RGP30D
ActiveNTE Electronics, Inc
DIODE GEN PURP 200V 3A DO201AD
RGP30D
ActiveNTE Electronics, Inc
DIODE GEN PURP 200V 3A DO201AD
Description
General part information
RGP30D

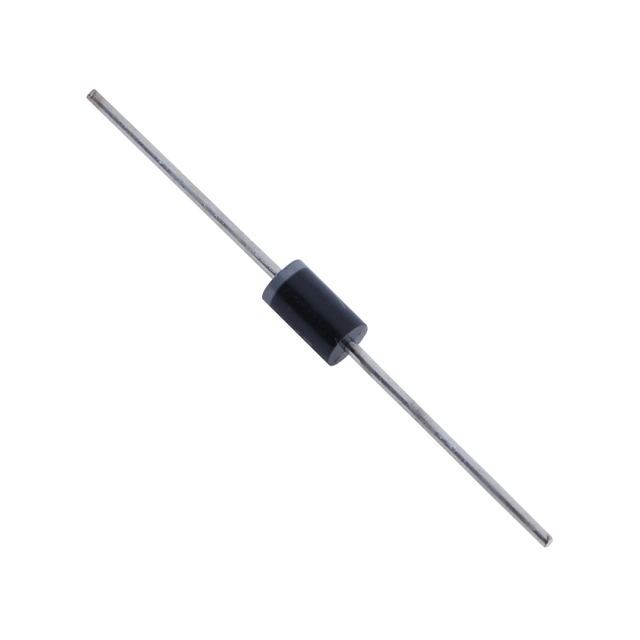

Diode 200 V 3A Through Hole DO-201AD
Technical Specifications
Parameters and characteristics for this part
| Specification | RGP30D |
|---|---|
| Capacitance | 60 pF |
| Current - Average Rectified (Io) | 3 A |
| Current - Reverse Leakage | 5 µA |
| Mounting Type | Through Hole |
| Package / Case | DO-201AD, Axial |
| Package Name | DO-201AD |
| Reverse Recovery Time (trr) | 150 ns |
| Speed - Fast Recovery (Maximum) | 500 ns |
| Speed - Fast Recovery (Minimum) | 200 mA |
| Technology | Standard |
| Voltage - DC Reverse (Vr) (Max) | 200 V |
| Voltage - Forward (Vf) (Max) | 1.3 V |
