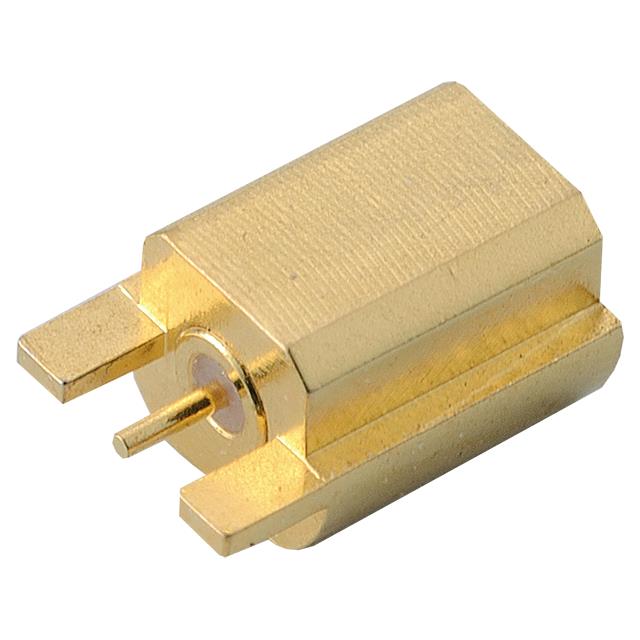

123-0701-801

Active

Cinch Connectivity Solutions Johnson

SMP3 SMT END LAUNCH, MALE, FULL

Search across all available documentation for this part.

Active

Cinch Connectivity Solutions Johnson

SMP3 SMT END LAUNCH, MALE, FULL

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	123-0701-801	123-0701 Series

Body Finish	Gold	Gold
Body Material	Beryllium Copper	Stainless Steel, Beryllium Copper
Center Contact Material	Beryllium Copper	Beryllium Copper
Center Contact Plating	Gold	Gold
Connector Style	SMP3	SMP3
Connector Type	Male Pin, Plug	Male Pin, Plug
Contact Termination	Solder	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On	Snap-On
Frequency - Max [Max]	50 GHz	50 - 67 GHz
Housing Color	Gold	Gold
Impedance	50 Ohms	50 Ohms
Mounting Type	Cutout, Board Edge, Surface Mount	Board Edge, End Launch, Cutout, Surface Mount
Number of Ports	1	1 - 2
Operating Temperature [Max]	165 °C	165 °C
Operating Temperature [Min]	-65 ░C	-65 ░C
Shield Termination	Solder	Solder
Voltage Rating	250 VDC	250 VDC

SMP3 SMT END LAUNCH MALE, FULL D

Part	Mounting Type	Body Material	Impedance	Voltage Rating	Number of Ports	Contact Termination	Fastening Type	Shield Termination	Center Contact Plating	Connector Style	Housing Color	Center Contact Material	Frequency - Max [Max]	Body Finish	Dielectric Material	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type
Cinch Connectivity Solutions Johnson 123-0701-811	Board Edge, End Launch	Stainless Steel	50 Ohms	250 VDC	2	Solder	Snap-On	Solder	Gold	SMP3	Gold	Beryllium Copper	67 GHz	Gold	Polytetrafluoroethylene (PTFE)	-65 ░C	165 °C	Male Pin, Plug
Cinch Connectivity Solutions Johnson 123-0701-801	Board Edge, Cutout, Surface Mount	Beryllium Copper	50 Ohms	250 VDC	1	Solder	Snap-On	Solder	Gold	SMP3	Gold	Beryllium Copper	50 GHz	Gold	Polytetrafluoroethylene (PTFE)	-65 ░C	165 °C	Male Pin, Plug
Cinch Connectivity Solutions Johnson 123-0701-201	Surface Mount	Beryllium Copper	50 Ohms	250 VDC	1	Solder	Snap-On	Solder	Gold	SMP3	Gold	Beryllium Copper	50 GHz	Gold	Polytetrafluoroethylene (PTFE)	-65 ░C	165 °C	Male Pin, Plug

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SMP3 Connector Plug, Male Pin 50 Ohms Board Edge, Cutout; Surface Mount Solder
