APS18SH1032G-8TM
UnknownApacer Memory America
SSD 32GB SLIM-SATA MLC SATAIII
APS18SH1032G-8TM
UnknownApacer Memory America
SSD 32GB SLIM-SATA MLC SATAIII
Description
General part information
APS18SH1032G-8TM

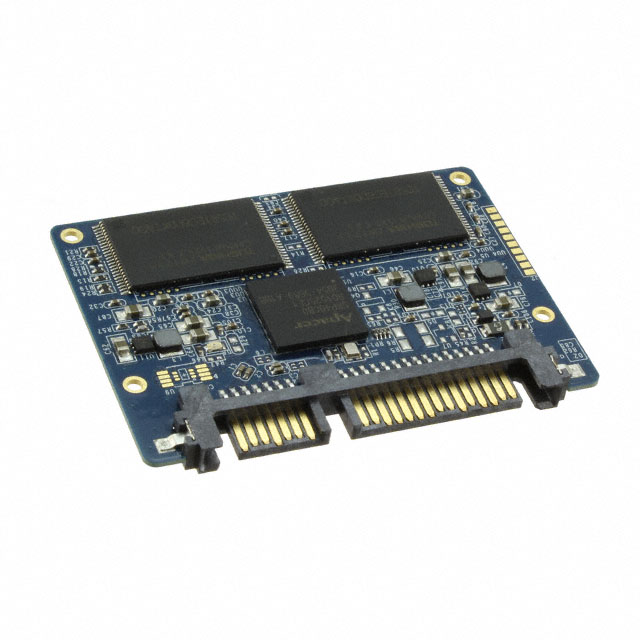

Solid State Drive (SSD) FLASH - NAND (MLC) 32GB SATA III Slim-SATA 5V
Technical Specifications
Parameters and characteristics for this part
| Specification | APS18SH1032G-8TM |
|---|---|
| Current - Max | 218 mA |
| Form Factor | Slim-SATA |
| Memory Size | 256 Gbit |
| Memory Type | Solid State Drive (SSD) FLASH - NAND (MLC) |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | 0 °C |
| Size / Dimension Height | 4 mm |
| Size / Dimension Length | 54 mm |
| Size / Dimension Width | 39.8 mm |
| Speed - Read | 480 MB/s |
| Speed - Write | 150 MB/s |
| Type | SATA III |
| Voltage - Supply | 5 VDC |
