EN2C6M26G2

Active

Switchcraft Inc.

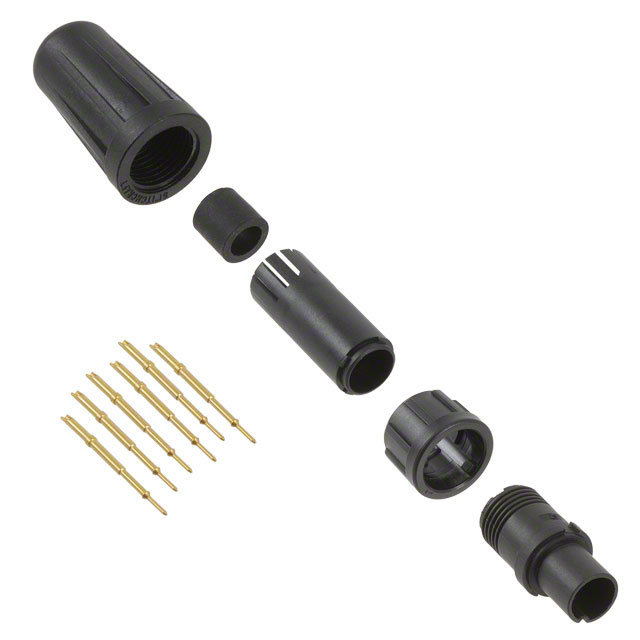

CONN PLUG MALE 6POS GOLD CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

EN2C6M26G2

Active

Switchcraft Inc.

CONN PLUG MALE 6POS GOLD CRIMP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	EN2C6M26G2	EN2C6M Series

Applications	Marine, Communication Systems, Medical, Industrial	Marine, Communication Systems, Medical, Industrial
Backshell Material, Plating	Thermoplastic	Thermoplastic
Cable Opening	-	2.54 - 3.56 mm
Cable Opening	-	0.1 - 0.14 in
Cable Opening	-	0.18 in
Cable Opening	-	0.22 in
Cable Opening	-	4.57 mm
Cable Opening	-	5.59 mm
Cable Opening [Max] [diameter]	4.57 mm	4.57 mm
Cable Opening [Max] [diameter]	0.18 in	0.18 in
Cable Opening [Min] [diameter]	3.56 mm	3.56 mm
Cable Opening [Min] [diameter]	0.14 in	0.14 in
Color	Black	Black
Connector Type	Plug, Male Pins	Plug, Male Pins
Contact Finish - Mating	Gold	Gold
Contact Material	Copper Alloy	Copper Alloy
Fastening Type	Bayonet Lock	Bayonet Lock
Features	Coupling Nut, Backshell	Coupling Nut, Backshell, Winged
Ingress Protection	IP68, IP66, IP67	IP68, IP66, IP67
Insert Material	Elastomer	Elastomer
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	6	6
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Keyed	Keyed
Primary Material	Plastic	Plastic
Shielding	Unshielded	Unshielded
Termination	Crimp, Solder Cup	Crimp, Solder Cup
Voltage Rating	125 VAC	125 VAC

EN2C6M Series

CONN PLUG MALE 6POS GOLD CRIMP

Part	Contact Finish - Mating	Backshell Material, Plating	Termination	Ingress Protection	Applications	Insert Material	Material Flammability Rating	Shielding	Connector Type	Fastening Type	Operating Temperature [Max]	Operating Temperature [Min]	Features	Color	Number of Positions	Orientation	Mounting Type	Contact Material	Primary Material	Voltage Rating	Cable Opening [custom]	Cable Opening [custom]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]
Switchcraft Inc. EN2C6M26G1	Gold	Thermoplastic	Crimp, Solder Cup	IP66, IP67, IP68	Communication Systems, Industrial, Marine, Medical	Elastomer	UL94 V-0	Unshielded	Male Pins, Plug	Bayonet Lock	85 °C	-40 °C	Backshell, Coupling Nut	Black	6	Keyed	Free Hanging (In-Line)	Copper Alloy	Plastic	125 VAC	2.54 mm, 3.56 mm	0.1 in, 0.14 in
Switchcraft Inc. EN2C6M26G2W	Gold	Thermoplastic	Crimp, Solder Cup	IP66, IP67, IP68	Communication Systems, Industrial, Marine, Medical	Elastomer	UL94 V-0	Unshielded	Male Pins, Plug	Bayonet Lock	85 °C	-40 °C	Backshell, Coupling Nut, Winged	Black	6	Keyed	Free Hanging (In-Line)	Copper Alloy	Plastic	125 VAC			4.57 mm	3.56 mm	0.14 in	0.18 in
Switchcraft Inc. EN2C6M26DC	Gold	Thermoplastic	Crimp, Solder Cup	IP66, IP67, IP68	Communication Systems, Industrial, Marine, Medical	Elastomer	UL94 V-0	Unshielded	Male Pins, Plug	Bayonet Lock	85 °C	-40 °C	Backshell, Coupling Nut	Black	6	Keyed	Free Hanging (In-Line)	Copper Alloy	Plastic	125 VAC
Switchcraft Inc. EN2C6M26G1W	Gold	Thermoplastic	Crimp, Solder Cup	IP66, IP67, IP68	Communication Systems, Industrial, Marine, Medical	Elastomer	UL94 V-0	Unshielded	Male Pins, Plug	Bayonet Lock	85 °C	-40 °C	Backshell, Coupling Nut, Winged	Black	6	Keyed	Free Hanging (In-Line)	Copper Alloy	Plastic	125 VAC	2.54 mm, 3.56 mm	0.1 in, 0.14 in
Switchcraft Inc. EN2C6M26G3W	Gold	Thermoplastic	Crimp, Solder Cup	IP66, IP67, IP68	Communication Systems, Industrial, Marine, Medical	Elastomer	UL94 V-0	Unshielded	Male Pins, Plug	Bayonet Lock	85 °C	-40 °C	Backshell, Coupling Nut, Winged	Black	6	Keyed	Free Hanging (In-Line)	Copper Alloy	Plastic	125 VAC							0.18 in	0.22 in	4.57 mm	5.59 mm
Switchcraft Inc. EN2C6M26G2	Gold	Thermoplastic	Crimp, Solder Cup	IP66, IP67, IP68	Communication Systems, Industrial, Marine, Medical	Elastomer	UL94 V-0	Unshielded	Male Pins, Plug	Bayonet Lock	85 °C	-40 °C	Backshell, Coupling Nut	Black	6	Keyed	Free Hanging (In-Line)	Copper Alloy	Plastic	125 VAC			4.57 mm	3.56 mm	0.14 in	0.18 in
Switchcraft Inc. EN2C6M26G3	Gold	Thermoplastic	Crimp, Solder Cup	IP66, IP67, IP68	Communication Systems, Industrial, Marine, Medical	Elastomer	UL94 V-0	Unshielded	Male Pins, Plug	Bayonet Lock	85 °C	-40 °C	Backshell, Coupling Nut	Black	6	Keyed	Free Hanging (In-Line)	Copper Alloy	Plastic	125 VAC							0.18 in	0.22 in	4.57 mm	5.59 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 7.46

Description

General part information

EN2C6M Series

6 Position Circular Connector Plug, Male Pins Crimp or Solder Cup
