8259 010500

Active

Belden Inc.

RG-58A/U 50 OHMS COAX

Search across all available documentation for this part.

Active

Belden Inc.

RG-58A/U 50 OHMS COAX

Technical Specifications

Parameters and characteristics for this part

Specification	8259 010500

Cable Group	RG-58
Cable Type	Coaxial
Conductor Material	Copper, Tinned
Conductor Strand	33 AWG
Conductor Strand [custom]	19 Strands
Dielectric Diameter [diameter]	0.117 in
Dielectric Diameter [diameter]	2.97 mm
Impedance	50 Ohms
Jacket (Insulation) Diameter [diameter]	4.9 mm
Jacket (Insulation) Diameter [diameter]	0.193 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Black
Length	152.4 m
Length	6000 in
Operating Temperature [Max]	75 ░C
Operating Temperature [Min]	-30 ░C
Shield Coverage	95 %
Shield Material	Copper, Tinned
Shield Type	Braid
Usage	RF Signal
Wire Gauge	20 AWG

Part	Conductor Strand [custom]	Conductor Strand	Cable Group	Shield Type	Impedance	Jacket Color	Operating Temperature [Min]	Operating Temperature [Max]	Cable Type	Wire Gauge	Shield Coverage	Jacket (Insulation) Material	Shield Material	Dielectric Diameter [diameter]	Dielectric Diameter [diameter]	Length	Length	Conductor Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Usage
Belden Inc. 8259 010U1000	19 Strands	33 AWG	RG-58A	Braid	50 Ohms	Black	-40 °C	75 ░C	Coaxial	20 AWG	95 %	Poly-Vinyl Chloride (PVC)	Copper Tinned	2.95 mm	0.116 in	304.8 m	1000 ft	Copper Tinned	4.9 mm	0.193 in
Belden Inc. 8259 0105000	19 Strands	33 AWG	RG-58	Braid	50 Ohms	Black	-30 ░C	75 ░C	Coaxial	20 AWG	95 %	Poly-Vinyl Chloride (PVC)	Copper Tinned	2.97 mm	0.117 in			Copper Tinned	4.9 mm	0.193 in	RF Signal
Belden Inc. 8259 010500	19 Strands	33 AWG	RG-58	Braid	50 Ohms	Black	-30 ░C	75 ░C	Coaxial	20 AWG	95 %	Poly-Vinyl Chloride (PVC)	Copper Tinned	2.97 mm	0.117 in	152.4 m	6000 in	Copper Tinned	4.9 mm	0.193 in	RF Signal

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	500	$ 1.13

General part information

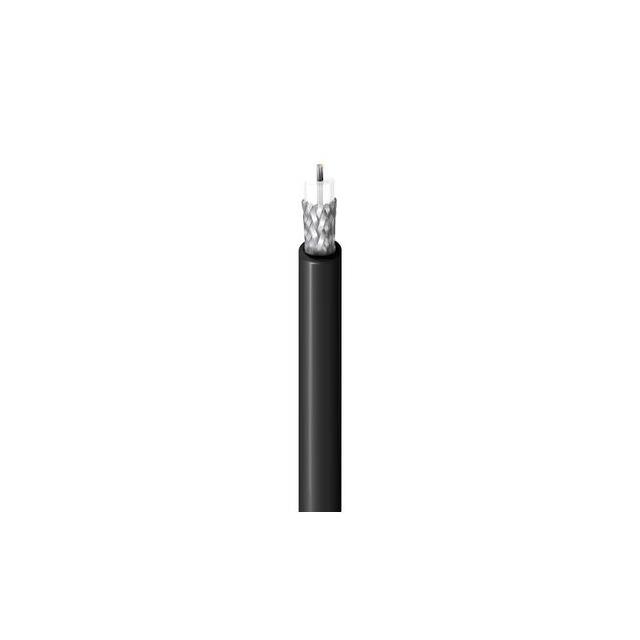

Coaxial Cable 20 AWG RG-58 500.0' (152.40m) 50 Ohms
