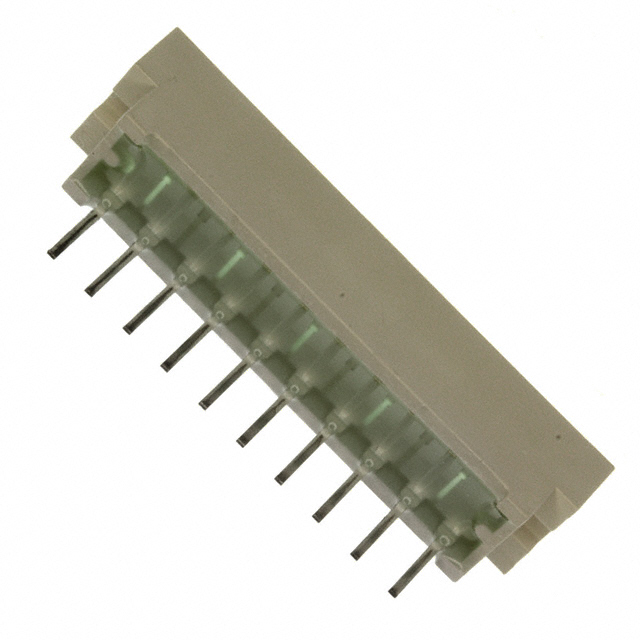

MU07-5101
ObsoleteStanley Electric Co
LED LGT BAR 29X6MM GRN DIF 10PIN
MU07-5101
ObsoleteStanley Electric Co
LED LGT BAR 29X6MM GRN DIF 10PIN
Description
General part information
MU07-5101
LED Circuit Board Indicator LED Circuit Board Indicator Bar - Single, SIP Green Tinted 2.2V 60mA Rectangle with Flat Top 29.00mm x 6.00mm Through Hole
Technical Specifications
Parameters and characteristics for this part
| Specification | MU07-5101 |
|---|---|
| Color | Green |
| Configuration | SIP, Bar - Single |
| Current | 60 mA |
| Lens Length | 29 mm |
| Lens Style | Rectangle, Flat Top |
| Lens Type | Tinted |
| Lens Width | 6 mm |
| Millicandela Rating | 20 mcd |
| Mounting Type | Through Hole |
| Voltage Rating | 2.2 V |
| Wavelength - Peak | 555 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
