AS1359-TT-18_EK_ST

Obsolete

ams-OSRAM USA INC.

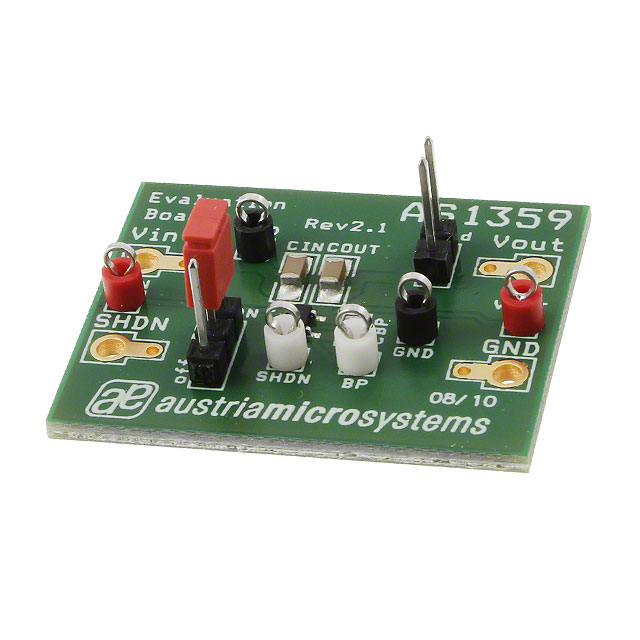

EVAL BOARD FOR AS1359

Search across all available documentation for this part.

Obsolete

ams-OSRAM USA INC.

EVAL BOARD FOR AS1359

Technical Specifications

Parameters and characteristics commom to parts in this series

IC REG LIN 2.5V 300MA TSOT23-5

Part	Package / Case	Number of Regulators	Mounting Type	Output Configuration	Voltage - Input (Max) [Max]	Voltage Dropout (Max) [Max]	PSRR [Max]	PSRR [Min]	Protection Features	Operating Temperature [Max]	Operating Temperature [Min]	Control Features	Voltage - Output (Min/Fixed)	Output Type	Current - Output	Current - Quiescent (Iq)	Contents	Utilized IC / Part	Channels per IC	Regulator Type	Voltage - Output
ams-OSRAM USA INC. AS1359-BTTT-25	SOT-23-5 Thin, TSOT-23-5	1	Surface Mount	Positive	5.5 V	0.23 V	92 dB	62 dB	Over Temperature	85 °C	-40 °C	Enable	2.5 V	1.81 mOhm	300 mA	90 çA
ams-OSRAM USA INC. AS1359-TT-18_EK_ST															300 mA		Board(s)	AS1359	1 - Single	Positive Fixed	1.8 V
ams-OSRAM USA INC. AS1359-BTTT-31	SOT-23-5 Thin, TSOT-23-5	1	Surface Mount	Positive	5.5 V	0.2 V	92 dB	62 dB	Over Temperature	85 °C	-40 °C	Enable	3.1 V	1.81 mOhm	300 mA	90 çA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

AS1359 - 1 - Single Channels per IC Positive Fixed Linear Voltage Regulator Evaluation Board
