EDN.0M.305.XLM

Active

LEMO

CONN RCPT FMALE 5POS GOLD CRIMP

Search across all available documentation for this part.

Active

LEMO

CONN RCPT FMALE 5POS GOLD CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	EDN.0M.305.XLM

Applications	Military, Aerospace, Automotive, Aviation
Cable Opening [custom]	0.186 in
Cable Opening [custom]	4.72 mm
Color	Gray
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	59 Áin
Contact Finish Thickness - Mating	1.5 Ám
Contact Material	Bronze
Current Rating (Amps)	6.5 A
Ingress Protection	IP68 - Dust Tight, Waterproof
Insert Material	Polyetheretherketone (PEEK)
Mounting Feature	Flange
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-55 °C
Orientation	N
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Aluminum Alloy
Shell Size - Insert	305
Shielding	Shielded
Termination	Crimp

CONN RCPT FMALE 5POS GOLD CRIMP

Part	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Mating	Primary Material	Shell Material	Ingress Protection	Mounting Feature	Contact Material	Shielding	Current Rating (Amps)	Connector Type	Insert Material	Cable Opening [custom]	Cable Opening [custom]	Color	Operating Temperature [Min]	Operating Temperature [Max]	Shell Finish	Termination	Shell Size - Insert	Applications	Orientation
LEMO EDN.0M.305.XLM	59 Áin	1.5 Ám	Gold	Metal	Aluminum Alloy	IP68 - Dust Tight, Waterproof	Flange	Bronze	Shielded	6.5 A	Receptacle, Female Sockets	Polyetheretherketone (PEEK)	0.186 in	4.72 mm	Gray	-55 °C	200 °C	Nickel	Crimp	305	Aerospace, Automotive, Aviation, Military	N

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 44.78

General part information

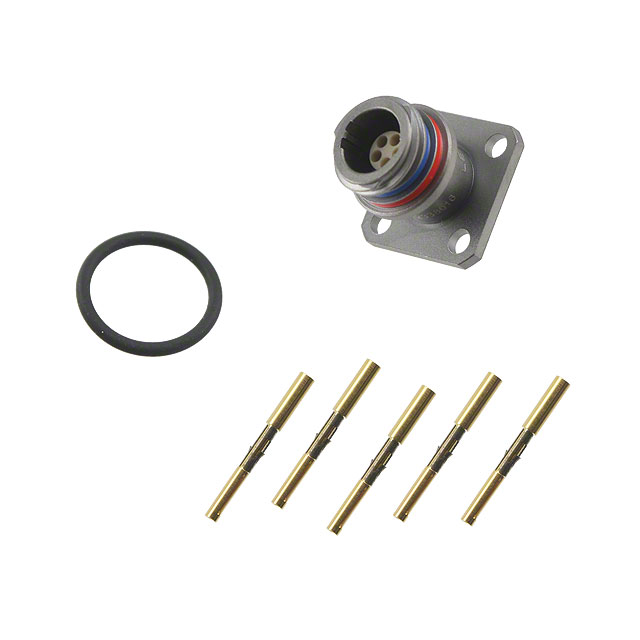

5 Position Circular Connector Receptacle, Female Sockets Crimp
