794761-1
ActiveTE Connectivity AMP Connectors

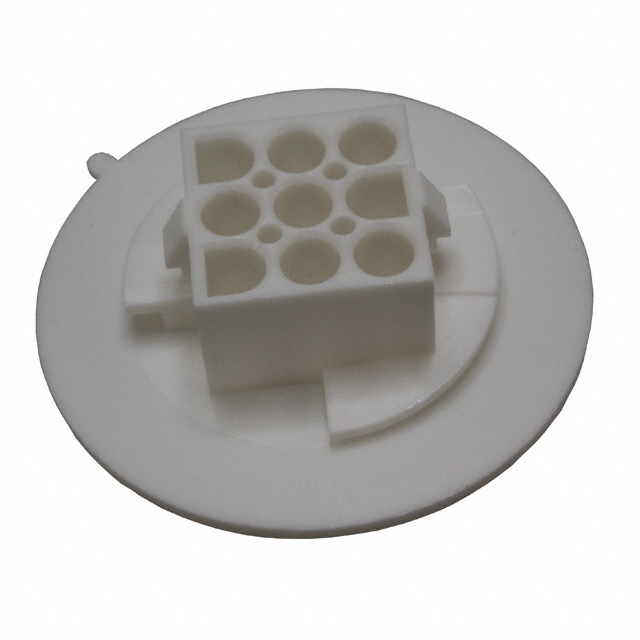

CONN RCPT HSG 9POS FLANGE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
794761-1
ActiveTE Connectivity AMP Connectors
CONN RCPT HSG 9POS FLANGE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 794761-1 | 794761 Series |
|---|---|---|
| Color | Natural | Natural, Red |
| Connector Type | Receptacle | Receptacle |
| Contact Termination | Crimp | Crimp |
| Contact Type | Male or Female | Male or Female |
| Fastening Type | Locking Ramp | Locking Ramp |
| Insulation Material | Polyamide (PA), Nylon | Polyamide (PA), Nylon, Glass Filled |
| Mounting Type | Panel Mount, Twist and Lock | Panel Mount, Twist and Lock |
| Note | Contacts Not Included | Contacts Not Included |
| Number of Positions | 9 | 9 |
| Number of Rows | 3 | 3 |
| Operating Temperature [Max] | 105 ░C | 105 ░C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Pitch | - | 0.25 in |
| Pitch | - | 6.35 mm |
| Row Spacing | 6.35 mm | 6.35 mm |
| Row Spacing | 0.25 in | 0.25 in |
794761 Series
CONN RCPT HSG 9POS FLANGE
| Part | Mounting Type | Fastening Type | Insulation Material | Contact Type | Color | Number of Rows | Note | Row Spacing | Row Spacing | Operating Temperature [Max] | Operating Temperature [Min] | Number of Positions | Contact Termination | Connector Type | Pitch [x] | Pitch [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 794761-1 | Panel Mount, Twist and Lock | Locking Ramp | Nylon, Polyamide (PA) | Male or Female | Natural | 3 | Contacts Not Included | 6.35 mm | 0.25 in | 105 ░C | -55 °C | 9 | Crimp | Receptacle | ||
TE Connectivity AMP Connectors 1-794761-2 | Locking Ramp | Glass Filled, Nylon, Polyamide (PA) | Male or Female | Red | 3 | 6.35 mm | 0.25 in | 105 ░C | -55 °C | 9 | Crimp | Receptacle | 0.25 in | 6.35 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.70 | |
| 10 | $ 1.52 | |||
| 25 | $ 1.51 | |||
| 50 | $ 1.49 | |||
| 100 | $ 1.37 | |||
| 250 | $ 1.36 | |||
| 500 | $ 1.35 | |||
Description
General part information
794761 Series
9 Rectangular Connectors - Housings Receptacle Natural
Documents
Technical documentation and resources
