2415
ActiveKeystone Electronics
SCREWS & FASTENERS 6-32 .531 CAP SCRW
2415
ActiveKeystone Electronics
SCREWS & FASTENERS 6-32 .531 CAP SCRW
Description
General part information
2415

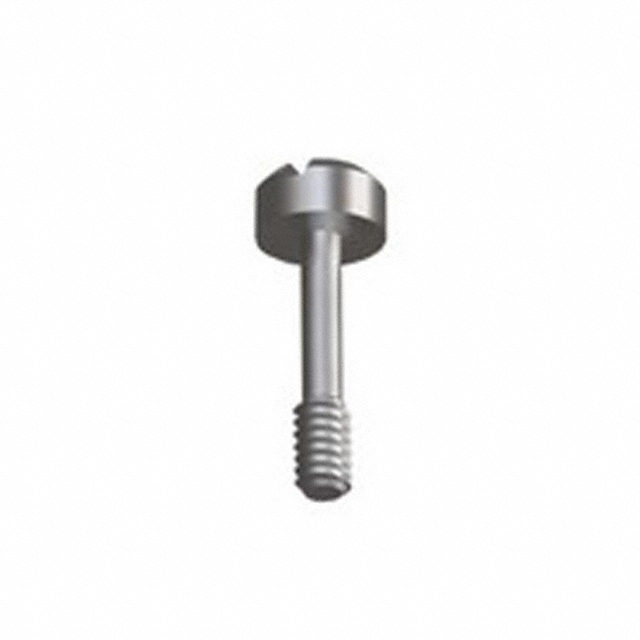

#6-32 Cheese Head Shoulder Screw Slotted Drive Stainless Steel
Technical Specifications
Parameters and characteristics for this part
| Specification | 2415 |
|---|---|
| Drive Type | Slotted |
| Head Diameter | 0.281 in |
| Head Height | 0.125 in |
| Length - Below Head | 0.531 in |
| Length - Overall | 0.656 in |
| Material | Stainless Steel |
| Screw Head Type | Cheese Head |
| Thread Size (Max) | 32 mm |
| Thread Size (Min) | 6 mm |
| Type | Shoulder Screw |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
