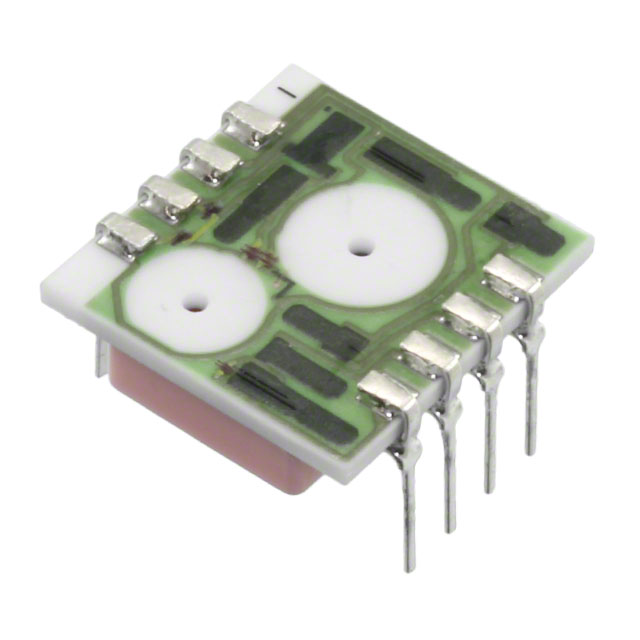

1210A-100G-3N
ObsoleteTE Connectivity Measurement Specialties
SENSOR 100PSIG 0.1V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1210A-100G-3N
ObsoleteTE Connectivity Measurement Specialties
SENSOR 100PSIG 0.1V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1210A-100G-3N |
|---|---|
| Applications | Board Mount |
| Features | Temperature Compensated |
| Maximum Pressure [Max] | 200 PSI |
| Maximum Pressure [Max] | 1378.95 kPa |
| Mounting Type | Through Hole |
| Operating Pressure | 689.48 kPa |
| Operating Pressure | 100 PSI |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Output [Max] | 100 mV |
| Output [Min] | 0 mV |
| Output Type | Wheatstone Bridge |
| Package / Case | 8-DIP Module |
| Port Style | No Port |
| Pressure Type | Vented Gauge |
| Termination Style | PC Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
1210A-100G-3N
Pressure Sensor 100PSI (689.48kPa) Vented Gauge 0 mV ~ 100 mV 8-DIP Module
