Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | T2080172101-000 | T208 Series |
|---|---|---|
| Color | Gray | Gray |
| Connector Type | Insert without Contacts | Insert without Contacts |
| Contact Type | DDM, CDM | DDF, CDF, DDM, CDM, CEM, DEM, CEF, DEF, DD, CD |
| Current Rating (Amps) | 10 A | 10 - 16 A |
| Gender | Male | Female, Male |
| Housing Material | Polycarbonate (PC) | Polycarbonate (PC) |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Number of Positions | 17+Ground | 17+Ground, 12+Ground, 5+Ground, 7+Ground |
| Operating Temperature | - | 125 °C |
| Operating Temperature | - | -40 °C |
| Size | H8A | H8A, H3A |
| Termination Style | Crimp | Crimp |
| Voltage Rating | 250 VDC | 250 - 400 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 3.74 | |
| 10 | $ 3.28 | |||
| 30 | $ 3.19 | |||
| 50 | $ 3.12 | |||
| 100 | $ 3.02 | |||
T208 Series
HQ-017-F
| Part | Color | Connector Type | Termination Style | Size | Current Rating (Amps) | Number of Positions | Voltage Rating | Contact Type | Housing Material | Material Flammability Rating | Gender | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors T2080172201-000 | Gray | Insert without Contacts | Crimp | H8A | 10 A | 17+Ground | 250 VDC | CDF, DDF | Polycarbonate (PC) | UL94 V-0 | Female | ||
TE Connectivity AMP Connectors T2080122101-000 | Insert without Contacts | Crimp | H3A | 10 A | 12+Ground | 400 V | CDM, DDM | Polycarbonate (PC) | UL94 V-0 | Male | |||
TE Connectivity AMP Connectors T2080052101-001 | Crimp | H3A | 16 A | 5+Ground | 400 V | CEM, DEM | Polycarbonate (PC) | UL94 V-0 | Male | 125 °C | -40 °C | ||
TE Connectivity AMP Connectors T2080122201-000 | Insert without Contacts | Crimp | H3A | 10 A | 12+Ground | 400 V | CDF, DDF | Polycarbonate (PC) | UL94 V-0 | Female | |||
TE Connectivity AMP Connectors T2080052201-001 | Crimp | H3A | 16 A | 5+Ground | 400 V | CEF, DEF | Polycarbonate (PC) | UL94 V-0 | Female | 125 °C | -40 °C | ||
TE Connectivity AMP Connectors T2080072201-000 | Gray | Insert without Contacts | Crimp | H3A | 10 A | 7+Ground | 400 V | CD, DD | Polycarbonate (PC) | UL94 V-0 | Female | 125 °C | -40 °C |
TE Connectivity AMP Connectors T2080172101-000 | Gray | Insert without Contacts | Crimp | H8A | 10 A | 17+Ground | 250 VDC | CDM, DDM | Polycarbonate (PC) | UL94 V-0 | Male |
Description
General part information
T208 Series

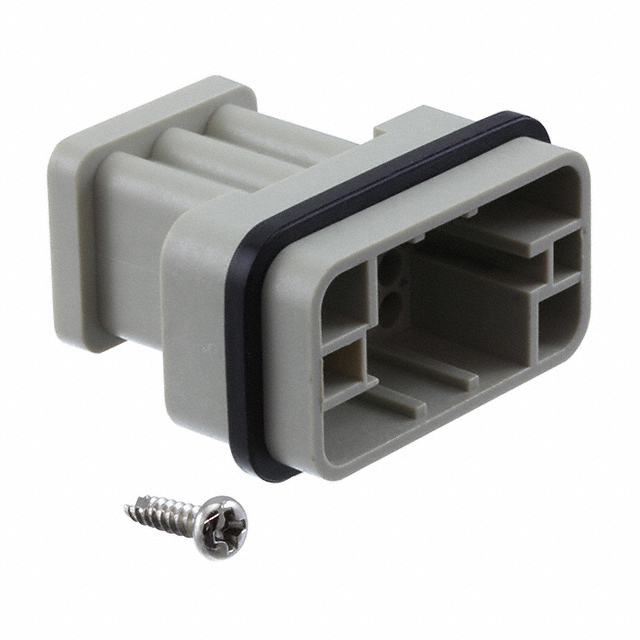

Male Insert without Contacts Gray 17+Ground Position Crimp
