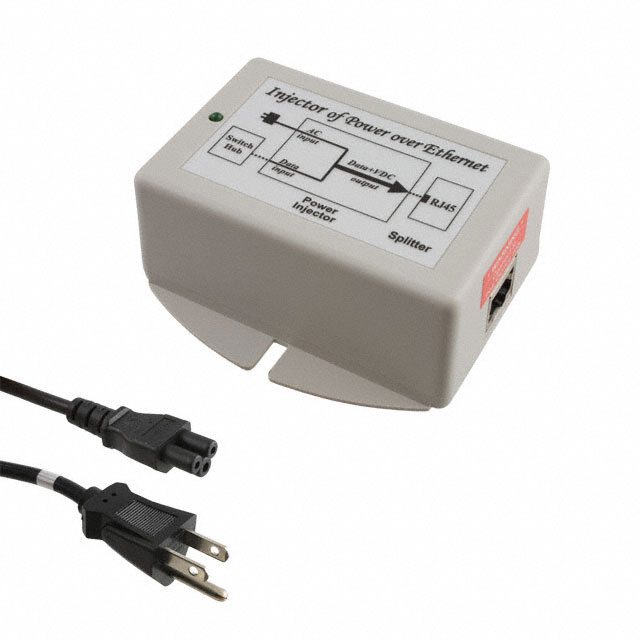

POE-24IR

Obsolete

TE Connectivity Raychem Cable Protection

POE INJECTOR 19.2W 24V DESKTOP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsPW_Antenna Catalog Datasheet

POE-24IR

Obsolete

TE Connectivity Raychem Cable Protection

POE INJECTOR 19.2W 24V DESKTOP

Deep-Dive with AI

DocumentsPW_Antenna Catalog Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	POE-24IR

Compliance	IEEE802.3af
Current - Output	800 mA
Efficiency	70 %
Features	OCP, SCP
Input Connector	IEC 320-C6
Mounting Type	Desktop
Note	AC Power Cord Included
Number of Ports	1
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-10 °C
Output Connector	RJ45 (Data, Power)
Power (Watts) - Per Port	19.2 W
Size / Dimension [x]	82.6 mm
Size / Dimension [x]	3.25 in
Size / Dimension [y]	76.2 mm
Size / Dimension [y]	3 "
Size / Dimension [z]	1.5 "
Size / Dimension [z]	38.1 mm
Type	Midspan Injector
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	24 V
Weight	146.96 g
Weight	0.324 lb

POE-24 Series

Part	Input Connector	Type	Mounting Type	Features	Number of Ports	Current - Output	Output Connector	Operating Temperature [Min]	Operating Temperature [Max]	Compliance	Voltage - Output	Voltage - Input [Max]	Voltage - Input [Min]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Weight	Weight	Power (Watts) - Per Port	Efficiency	Note
TE Connectivity Raychem Cable Protection POE-24S-AFI-	RJ45 (Data Power)	Splitter	Desktop	OCP SCP	1	500 mA	2.1mm Plug (Power) RJ45 (Data)	-10 °C	60 °C	IEEE802.3af	24 V	60 V	36 V	82.6 mm	1.5 "	76.2 mm	3 "	3.25 in	38.1 mm	130.18 g	0.287 lb
TE Connectivity Raychem Cable Protection POE-24I	IEC 320-C6	Midspan Injector	Desktop	OCP SCP	1	800 mA	RJ45 (Data Power)	-10 °C	60 °C	IEEE802.3af	24 V	264 VAC	90 VAC	82.6 mm	1.5 "	76.2 mm	3 "	3.25 in	38.1 mm	146.96 g	0.324 lb	19.2 W	70 %	AC Power Cord Included
TE Connectivity Raychem Cable Protection POE-24S-AFI	RJ45 (Data Power)	Splitter	Desktop	OCP SCP	1	500 mA	2.1mm Plug (Power) RJ45 (Data)	-10 °C	60 °C	IEEE802.3af	24 V	60 V	36 V	82.6 mm	1.5 "	76.2 mm	3 "	3.25 in	38.1 mm	130.18 g	0.287 lb
TE Connectivity Raychem Cable Protection POE-24IR-CI	IEC 320-C6	Midspan Injector	Desktop	OCP SCP	1	800 mA	RJ45 (Data Power)	-10 °C	60 °C	IEEE802.3af	24 V	264 VAC	90 VAC	82.6 mm	1.5 "	76.2 mm	3 "	3.25 in	38.1 mm	146.96 g	0.324 lb	19.2 W	70 %	AC Power Cord Included
TE Connectivity Raychem Cable Protection POE-24I-CI	IEC 320-C6	Midspan Injector	Desktop	OCP SCP	1	800 mA	RJ45 (Data Power)	-10 °C	60 °C	IEEE802.3af	24 V	264 VAC	90 VAC	82.6 mm	1.5 "	76.2 mm	3 "	3.25 in	38.1 mm	146.96 g	0.324 lb	19.2 W	70 %	AC Power Cord Included
TE Connectivity Raychem Cable Protection POE-24IR	IEC 320-C6	Midspan Injector	Desktop	OCP SCP	1	800 mA	RJ45 (Data Power)	-10 °C	60 °C	IEEE802.3af	24 V	264 VAC	90 VAC	82.6 mm	1.5 "	76.2 mm	3 "	3.25 in	38.1 mm	146.96 g	0.324 lb	19.2 W	70 %	AC Power Cord Included

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

POE-24 Series

24V Power Over Ethernet (POE) 1 Port Midspan Injector Data Rate
