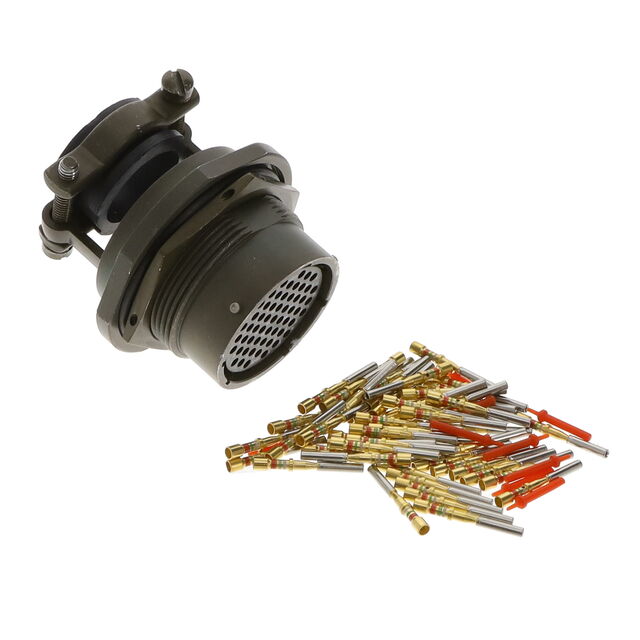

MS3124F22-55S
ActiveAmphenol Industrial Operations
MIL-26482 MS/PT/CMB RECEPT
Deep-Dive with AI
Search across all available documentation for this part.
MS3124F22-55S
ActiveAmphenol Industrial Operations
MIL-26482 MS/PT/CMB RECEPT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | MS3124F22-55S | MS3124F22 Series |
|---|---|---|
| - | - | |
| Applications | Military, Mass Transit, Instrumentation, Aerospace, Industrial | Military, Mass Transit, Instrumentation, Aerospace, Industrial |
| Color | Olive Drab | Olive Drab |
| Connector Type | Receptacle, Female Sockets | Receptacle, Female Sockets |
| Contact Finish - Mating | Gold | Gold |
| Contact Material | Copper Alloy | Copper Alloy |
| Current Rating (Amps) | 7.5 A | 7.5 A |
| Fastening Type | Bayonet Lock | Bayonet Lock |
| Features | Strain Relief | Strain Relief |
| Grade | Military | Military |
| Ingress Protection | Environment Resistant | Environment Resistant |
| Insert Material | Neoprene | Neoprene |
| Mounting Feature | Bulkhead - Front Side Nut | Bulkhead - Front Side Nut |
| Number of Positions | 55 positions | 55 positions |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Orientation | N | N |
| Primary Material | Metal | Metal |
| Qualification | MIL-DTL-26482 Series I | MIL-DTL-26482 Series I |
| Shell Finish | Olive Drab Chromate over Cadmium | Olive Drab Chromate over Cadmium |
| Shell Material | Aluminum | Aluminum |
| Shell Size - Insert [Max] | 55 | 55 |
| Shell Size - Insert [Min] | 22 | 22 |
| Shielding | Unshielded | Unshielded |
| Termination | Crimp | Crimp |
| Voltage Rating | 600 VAC | 600 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 407.20 | |
| 10 | $ 377.34 | |||
| 25 | $ 363.77 | |||
MS3124F22 Series
MIL-26482 MS/PT/CMB RECEPT
| Part | Orientation | Contact Finish - Mating | Connector Type | Shielding | Voltage Rating | Color | Contact Material | Qualification | Mounting Feature | Shell Size - Insert [Max] | Shell Size - Insert [Min] | Shell Material | Number of Positions | Operating Temperature [Min] | Operating Temperature [Max] | Current Rating (Amps) | Features | Termination | Ingress Protection | Primary Material | Applications | Fastening Type | Insert Material | Grade | Shell Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Industrial Operations MS3124F22-55S | N | Gold | Receptacle, Female Sockets | Unshielded | 600 VAC | Olive Drab | Copper Alloy | MIL-DTL-26482 Series I | Bulkhead - Front Side Nut | 55 | 22 | Aluminum | 55 positions | -55 °C | 125 °C | 7.5 A | Strain Relief | Crimp | Environment Resistant | Metal | Aerospace, Industrial, Instrumentation, Mass Transit, Military | Bayonet Lock | Neoprene | Military | Olive Drab Chromate over Cadmium |
Amphenol Industrial Operations MS3124F22-21P | |||||||||||||||||||||||||
Amphenol Industrial Operations MS3124F22-55S(LC) | |||||||||||||||||||||||||
Amphenol Industrial Operations MS3124F22-21S | |||||||||||||||||||||||||
Amphenol Industrial Operations MS3124F22-21P(LC) | |||||||||||||||||||||||||
Amphenol Industrial Operations MS3124F22-55P(LC) |
Description
General part information
MS3124F22 Series
55 Position Circular Connector Receptacle, Female Sockets Crimp
