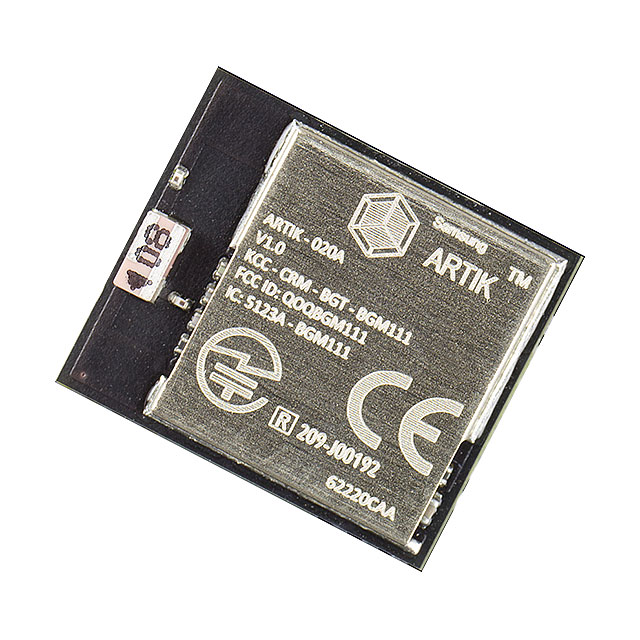

ARTIK-020-AV2R

Obsolete

Samsung Semiconductor, Inc.

RF TXRX MOD BLUETOOTH CHIP SMD

Search across all available documentation for this part.

Obsolete

Samsung Semiconductor, Inc.

RF TXRX MOD BLUETOOTH CHIP SMD

Technical Specifications

Parameters and characteristics for this part

RF TXRX MOD BLUETOOTH CHIP SMD

Part	Power - Output	Protocol	Current - Transmitting	Modulation	Antenna Type	Current - Receiving	Voltage - Supply [Min]	Voltage - Supply [Max]	Data Rate	Mounting Type	Sensitivity	Serial Interfaces	Operating Temperature [Max]	Operating Temperature [Min]	Memory Size	RF Family/Standard	Package / Case	Frequency
Samsung Semiconductor, Inc. ARTIK-020-AV2R	8 dBm	Bluetooth v4.2	8.2 mA	GFSK	Integrated, Chip	8.7 mA	1.85 V	3.8 V	1 Mbps	Surface Mount	-92 dBm	I2C, I2S, SPI, UART	85 °C	-40 °C	32 kB, 256 kB	Bluetooth	Module	2.4 GHz

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Bluetooth Bluetooth v4.2 Transceiver Module 2.4GHz Integrated, Chip Surface Mount
