ABC200-1048G

Active

Bel Power Solutions

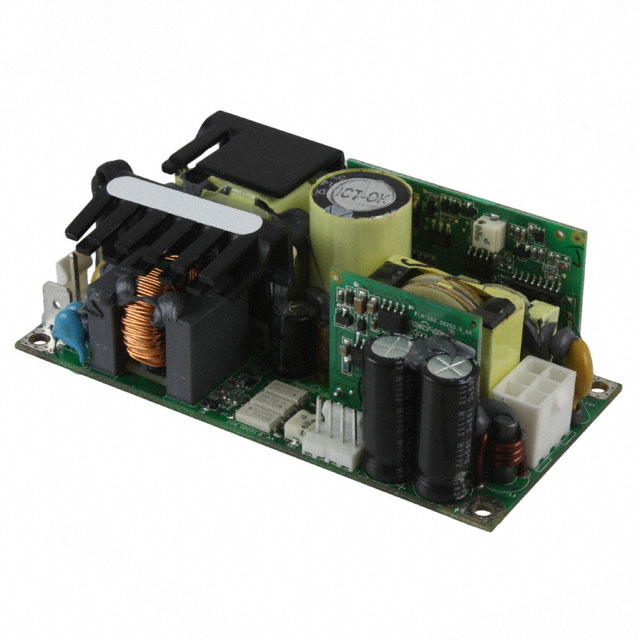

AC/DC CONVERTER 48V 200W

Search across all available documentation for this part.

Active

Bel Power Solutions

AC/DC CONVERTER 48V 200W

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ABC200-1048G	ABC200 Series

Applications	ITE (Commercial)	ITE (Commercial)
Approval Agency	CE, CB	CE, CB
Current - Output 1	4.25 A	4.25 A
Efficiency	91 %	91 %
Features	Remote Sense, PFC, Universal Input	Remote Sense, PFC, Universal Input
Mounting Type	Chassis Mount	Chassis Mount
Number of Outputs	1	1
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-10 °C	-10 °C
Power (Watts)	200 W	200 W
Size / Dimension [x]	101.6 mm	101.6 mm
Size / Dimension [x]	4 in	4 in
Size / Dimension [y]	2 in	2 in
Size / Dimension [y]	50.8 mm	50.8 mm
Size / Dimension [z]	36.6 mm	36.6 mm
Size / Dimension [z]	1.44 "	1.44 "
Type	Open Frame	Open Frame
Voltage - Input [Max]	264 VAC	264 VAC
Voltage - Input [Min]	90 VAC	90 VAC
Voltage - Isolation	4.2 kV	4.2 kV
Voltage - Output 1	48 V	24 - 48 V

AC/DC CONVERTER 24V 200W

Part	Voltage - Input [Min]	Voltage - Input [Max]	Applications	Power (Watts)	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Type	Features	Voltage - Isolation	Efficiency	Voltage - Output 1	Number of Outputs	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Approval Agency	Current - Output 1
Bel Power Solutions ABC200-1024G	90 VAC	264 VAC	ITE (Commercial)	200 W	101.6 mm	36.6 mm	1.44 "	4 in	2 in	50.8 mm	Open Frame	PFC, Remote Sense, Universal Input	4.2 kV	91 %	24 V	1	-10 °C	70 °C	Chassis Mount	CB, CE
Bel Power Solutions ABC200-1048G	90 VAC	264 VAC	ITE (Commercial)	200 W	101.6 mm	36.6 mm	1.44 "	4 in	2 in	50.8 mm	Open Frame	PFC, Remote Sense, Universal Input	4.2 kV	91 %	48 V	1	-10 °C	70 °C	Chassis Mount	CB, CE	4.25 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 162.50

General part information

Open Frame AC DC Converters 1 Output 48V 90 ~ 264 VAC Input
