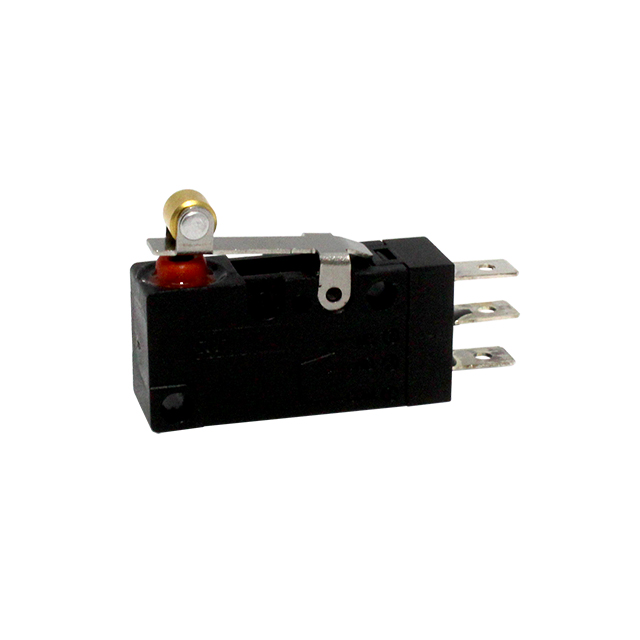

VM3SCQF3002L06

Active

CIT Relay and Switch

SWITCH LIMIT SPDT 10A 125V

Deep-Dive with AI

Search across all available documentation for this part.

VM3SCQF3002L06

Active

CIT Relay and Switch

SWITCH LIMIT SPDT 10A 125V

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	100	$ 4.40

Description

General part information

VM3SC Series

Switch SPDT Chassis Mount

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	VM3SCQF3002L06	VM3SC Series

Actuator Type	Roller, Lever	Simulated Roller, Lever, Round (Pin Plunger), Roller, Lever, Straight
Circuit	SPDT	SPDT
Differential Travel	1 mm	0.8 - 1.5 mm
Differential Travel	0.04 in	0.031 - 0.06 in
Electrical Life	50000 Cycles	50000 Cycles
Ingress Protection	IP67 - Dust Tight, Waterproof	IP67 - Dust Tight, Waterproof
Mechanical Life	1000000 Cycles	1000000 Cycles
Mounting Type	Chassis Mount	Chassis Mount
Operating Force	380 gf	120 - 380 gf
Operating Position	20.3 mm	14.75 - 20.5 mm
Operating Position	0.799 in	0.587 - 0.807 in
Operating Position	-	0.581 "
Operating Temperature [Max]	120 °C	120 °C
Operating Temperature [Min]	-40 °C	-40 °C
Overtravel	0.3 mm	0.3 mm
Overtravel	0.012 in	0.012 - 1 mm
Overtravel	-	0.02 - 0.039 in
Pretravel	0.067 in	0.06 - 0.138 in
Pretravel	1.7 mm	1.5 - 3.5 mm
Release Force	160 gf	50 - 250 gf
Switch Function	On-Mom	On-Mom
Termination Style	Quick Connect - 0.187" (4.7mm)	Wire Leads, Quick Connect - 0.187" (4.7mm)
Voltage Rating - AC	125 V	125 V
Voltage Rating - DC	36 VDC	36 VDC

VM3SC Series

SWITCH LIMIT SPDT 10A 125V

Part	Mechanical Life	Actuator Type	Ingress Protection	Circuit	Operating Temperature [Min]	Operating Temperature [Max]	Electrical Life	Operating Position	Operating Position	Termination Style	Differential Travel	Differential Travel	Release Force	Operating Force	Switch Function	Overtravel	Overtravel	Mounting Type	Voltage Rating - DC	Pretravel	Pretravel	Voltage Rating - AC	Operating Position
CIT Relay and Switch VM3SCQF1803L02	1000000 Cycles	Lever, Simulated Roller	IP67 - Dust Tight, Waterproof	SPDT	-40 °C	120 °C	50000 Cycles	0.736 in	18.7 mm	Wire Leads	0.05 in	1.3 mm	50 gf	120 gf	On-Mom	0.039 in	1 mm	Chassis Mount	36 VDC	0.118 in	3 mm	125 V
CIT Relay and Switch VM3SCGF3002L00	1000000 Cycles	Round (Pin Plunger)	IP67 - Dust Tight, Waterproof	SPDT	-40 °C	120 °C	50000 Cycles		14.75 mm	Quick Connect - 0.187" (4.7mm)	0.031 "	0.8 mm	250 gf	320 gf	On-Mom	0.024 in	0.6 mm	Chassis Mount	36 VDC	0.08 in	2 mm	125 V	0.581 "
CIT Relay and Switch VM3SCQF1803L00	1000000 Cycles	Round (Pin Plunger)	IP67 - Dust Tight, Waterproof	SPDT	-40 °C	120 °C	50000 Cycles		14.75 mm	Wire Leads	0.031 "	0.8 mm		180 gf	On-Mom	0.031 in	0.8 mm	Chassis Mount	36 VDC	0.063 in	1.6 mm	125 V	0.581 "
CIT Relay and Switch VM3SCGF3003L01	1000000 Cycles	Lever, Roller	IP67 - Dust Tight, Waterproof	SPDT	-40 °C	120 °C	50000 Cycles	0.795 in	20.2 mm	Wire Leads	0.05 in	1.3 mm		210 gf	On-Mom	0.031 in	0.8 mm	Chassis Mount	36 VDC	0.118 in	3 mm	125 V
CIT Relay and Switch VM3SCGF1803L02	1000000 Cycles	Lever, Simulated Roller	IP67 - Dust Tight, Waterproof	SPDT	-40 °C	120 °C	50000 Cycles	0.736 in	18.7 mm	Wire Leads	0.05 in	1.3 mm	50 gf	120 gf	On-Mom	0.039 in	1 mm	Chassis Mount	36 VDC	0.118 in	3 mm	125 V
CIT Relay and Switch VM3SCGF3003L02	1000000 Cycles	Lever, Simulated Roller	IP67 - Dust Tight, Waterproof	SPDT	-40 °C	120 °C	50000 Cycles	0.72 in	18.3 mm	Wire Leads	0.06 "	1.5 mm	180 gf	200 gf	On-Mom	0.024 in	0.6 mm	Chassis Mount	36 VDC	0.118 in	3 mm	125 V
CIT Relay and Switch VM3SCGF1802L04	1000000 Cycles	Lever, Straight	IP67 - Dust Tight, Waterproof	SPDT	-40 °C	120 °C	50000 Cycles	0.602 "	15.3 mm	Quick Connect - 0.187" (4.7mm)	0.04 in	1 mm	80 gf	190 gf	On-Mom	0.02 in	0.5 mm	Chassis Mount	36 VDC	0.071 in	1.8 mm	125 V
CIT Relay and Switch VM3SCQF3003L01	1000000 Cycles	Lever, Roller	IP67 - Dust Tight, Waterproof	SPDT	-40 °C	120 °C	50000 Cycles	0.795 in	20.2 mm	Wire Leads	0.05 in	1.3 mm		210 gf	On-Mom	0.031 in	0.8 mm	Chassis Mount	36 VDC	0.118 in	3 mm	125 V
CIT Relay and Switch VM3SCQF3002L01	1000000 Cycles	Lever, Roller	IP67 - Dust Tight, Waterproof	SPDT	-40 °C	120 °C	50000 Cycles	0.795 in	20.2 mm	Quick Connect - 0.187" (4.7mm)	0.05 in	1.3 mm		210 gf	On-Mom	0.031 in	0.8 mm	Chassis Mount	36 VDC	0.118 in	3 mm	125 V
CIT Relay and Switch VM3SCGF1802L06	1000000 Cycles	Lever, Roller	IP67 - Dust Tight, Waterproof	SPDT	-40 °C	120 °C	50000 Cycles	0.807 in	20.5 mm	Quick Connect - 0.187" (4.7mm)	0.04 in	1 mm		240 gf	On-Mom	0.02 in	0.5 mm	Chassis Mount	36 VDC	0.06 in	1.5 mm	125 V
