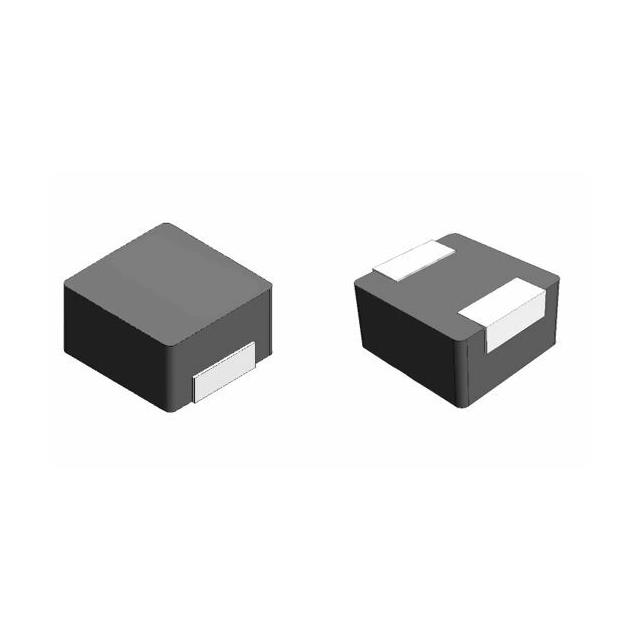

AMPLH5030S-8R2M-T
ActiveAbracon LLC
FIXED IND 8.2UH 5.2A 62.4MOHM SM
AMPLH5030S-8R2M-T
ActiveAbracon LLC
FIXED IND 8.2UH 5.2A 62.4MOHM SM
Description
General part information
AMPLH5030S-8R2M-T
8.2 µH Shielded Molded Inductor 5.8 A 62.4mOhm Max 2-SMD, J-Lead Low DCR, Soft Saturation
Technical Specifications
Parameters and characteristics for this part
| Specification | AMPLH5030S-8R2M-T |
|---|---|
| Current - Saturation (Isat) | 7.3 A |
| Current Rating | 5.8 A |
| DC Resistance (DCR) (Max) | 62.4 mOhm |
| Features | Low DCR, Soft Saturation |
| Height - Seated (Max) | 0.118 in |
| Inductance | 8.2 µH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Carbonyl Powder |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 2-SMD, J-Lead |
| Shielding | Shielded |
| Size / Dimension Length | 0.22 in |
| Size / Dimension Width | 0.205 in |
| Tolerance | 20 % |
| Type | Molded |
