A9AAT-1705E
ActiveTE Connectivity AMP Connectors
FLEX CABLE - AFH17T/AE17/AFH17T
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
A9AAT-1705E
ActiveTE Connectivity AMP Connectors
FLEX CABLE - AFH17T/AE17/AFH17T
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | A9AAT-1705E | A9AAT Series |
|---|---|---|
| Contact Termination | Solder Tab to Solder Tab | Solder Tab to Solder Tab |
| Length | - | 76.2 - 203.2 mm |
| Length | - | 6 - 8 in |
| Length [x] | 5 in | 3 - 5 in |
| Length [x] | 127 mm | 101.6 - 127 mm |
| Number of Positions | - | 2 - 22 |
| Number of Positions | - | 16 |
| Pitch [x] | 0.05 in | 0.05 - 0.1 in |
| Pitch [x] | 1.27 mm | 1.27 - 2.54 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 6.75 | |
| 10 | $ 5.59 | |||
| 25 | $ 5.19 | |||
| 50 | $ 4.90 | |||
| 100 | $ 4.63 | |||
| 250 | $ 4.30 | |||
| 500 | $ 4.07 | |||
| 1000 | $ 3.85 | |||
| 2500 | $ 3.61 | |||
A9AAT Series
FLEX CABLE - AFE06T/AF06/AFE06T
...
| Part | Number of Positions | Pitch [x] | Pitch [x] | Length [x] | Length [x] | Contact Termination | Length | Length | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors A9AAT-0605F | 6 | 2.54 mm | 0.1 in | 5 in | 127 mm | Solder Tab to Solder Tab | |||
TE Connectivity AMP Connectors A9AAT-1705E | 1.27 mm | 0.05 in | 5 in | 127 mm | Solder Tab to Solder Tab | ||||
TE Connectivity AMP Connectors A9AAT-1805F | 18 | 2.54 mm | 0.1 in | 5 in | 127 mm | Solder Tab to Solder Tab | |||
TE Connectivity AMP Connectors A9AAT-0608E | 6 | 1.27 mm | 0.05 in | Solder Tab to Solder Tab | 203.2 mm | 8 in | |||
TE Connectivity AMP Connectors A9AAT-0706E | 7 | 1.27 mm | 0.05 in | Solder Tab to Solder Tab | 152.4 mm | 6 in | |||
TE Connectivity AMP Connectors A9AAT-0604E | 6 | 1.27 mm | 0.05 in | 4 " | 101.6 mm | Solder Tab to Solder Tab | |||
TE Connectivity AMP Connectors A9AAT-1208F | 12 | 2.54 mm | 0.1 in | Solder Tab to Solder Tab | 203.2 mm | 8 in | |||
TE Connectivity AMP Connectors A9AAT-2506E | 1.27 mm | 0.05 in | Solder Tab to Solder Tab | 152.4 mm | 6 in | ||||
TE Connectivity AMP Connectors A9AAT-1306F | 13 | 2.54 mm | 0.1 in | Solder Tab to Solder Tab | 152.4 mm | 6 in | |||
TE Connectivity AMP Connectors A9AAT-1006F | 10 | 2.54 mm | 0.1 in | Solder Tab to Solder Tab | 152.4 mm | 6 in |
Description
General part information
A9AAT Series

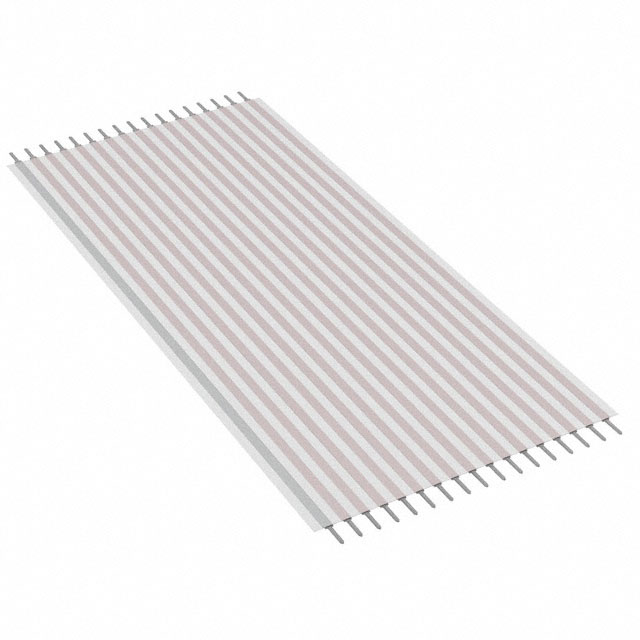

17 Position Flat Flex Cable Assembly Solder Tab to Solder Tab 5.00" (127.00mm)
