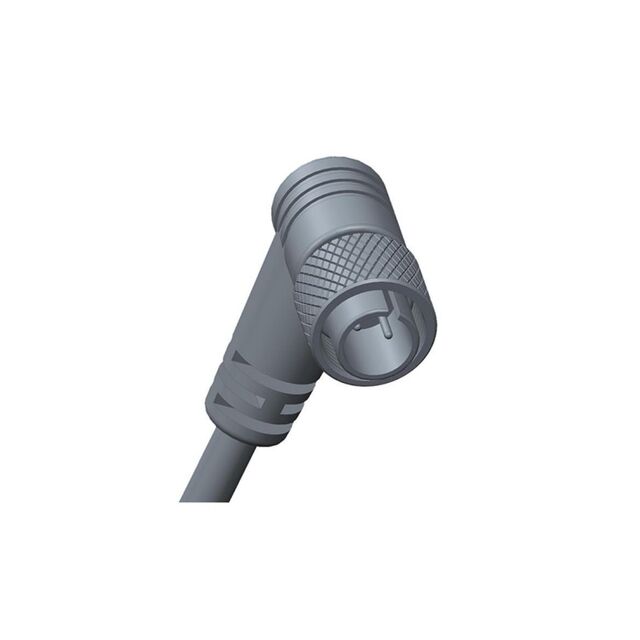

105-02AFMM-SR7A10

Active

Amphenol LTW

M SERIES SENSOR CONNECTOR, M10.5, METAL, 2A, 02 PINS, FEMALE CONNECTOR, MALE CONTACT, RIGHT ANGLE, SCREW THREAD, OVERMOLDED, LEN

Search across all available documentation for this part.

Active

Amphenol LTW

M SERIES SENSOR CONNECTOR, M10.5, METAL, 2A, 02 PINS, FEMALE CONNECTOR, MALE CONTACT, RIGHT ANGLE, SCREW THREAD, OVERMOLDED, LEN

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Circular Cable Assembly Unshielded 32.8' (10.00m)

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	105-02AFMM-SR7A10	105-02AFMM Series

1st Connector Gender	Male Pins	Male Pins
1st Connector Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
1st Connector Number of Positions	2	2
1st Connector Number of Positions Loaded	All	All
1st Connector Orientation [custom]	Keyed	Keyed
1st Connector Shell Size - Insert	M10.5	M10.5
1st Connector Type	Plug, Right Angle	Plug, Plug, Right Angle
2nd Connector Type	Wire Leads	Wire Leads
Assembly Configuration	Standard	Standard
Cable Material	Polyvinyl Chloride (PVC)	Polyvinyl Chloride (PVC)
Cable Type	Round	Round
Color	Black	Black
Ingress Protection	IP67 - Dust Tight, Waterproof	IP67 - Dust Tight, Waterproof
Length	-	1 - 500 m
Length	-	1.64 - 3.28 ft
Shielding	Unshielded	Unshielded
Usage	Industrial Environments	Industrial Environments

M SERIES SENSOR CONNECTOR, M10.5, METAL, 2A, 02 PINS, FEMALE CONNECTOR, MALE CONTACT, STRAIGHT, SCREW THREAD, OVERMOLDED, LENGTH

Part	2nd Connector Type	1st Connector Number of Positions Loaded	1st Connector Gender	1st Connector Orientation [custom]	1st Connector Shell Size - Insert	Cable Material	1st Connector Mounting Type	Ingress Protection	Usage	Assembly Configuration	1st Connector Number of Positions	Color	Shielding	1st Connector Type	Cable Type	Length [x]	Length [x]
Amphenol LTW 105-02AFMM-SL7A10	Wire Leads	All	Male Pins	Keyed	M10.5	Polyvinyl Chloride (PVC)	Free Hanging (In-Line)	IP67 - Dust Tight, Waterproof	Industrial Environments	Standard	2	Black	Unshielded	Plug	Round
Amphenol LTW 105-02AFMM-SR7A01	Wire Leads	All	Male Pins	Keyed	M10.5	Polyvinyl Chloride (PVC)	Free Hanging (In-Line)	IP67 - Dust Tight, Waterproof	Industrial Environments	Standard	2	Black	Unshielded	Plug, Right Angle	Round	1 m	3.28 ft
Amphenol LTW 105-02AFMM-SL7A05	Wire Leads	All	Male Pins	Keyed	M10.5	Polyvinyl Chloride (PVC)	Free Hanging (In-Line)	IP67 - Dust Tight, Waterproof	Industrial Environments	Standard	2	Black	Unshielded	Plug	Round	500 mm	1.64 ft
Amphenol LTW 105-02AFMM-SR7A10	Wire Leads	All	Male Pins	Keyed	M10.5	Polyvinyl Chloride (PVC)	Free Hanging (In-Line)	IP67 - Dust Tight, Waterproof	Industrial Environments	Standard	2	Black	Unshielded	Plug, Right Angle	Round
