SSL-LX3052GD

Active

Lumex Opto/Components Inc.

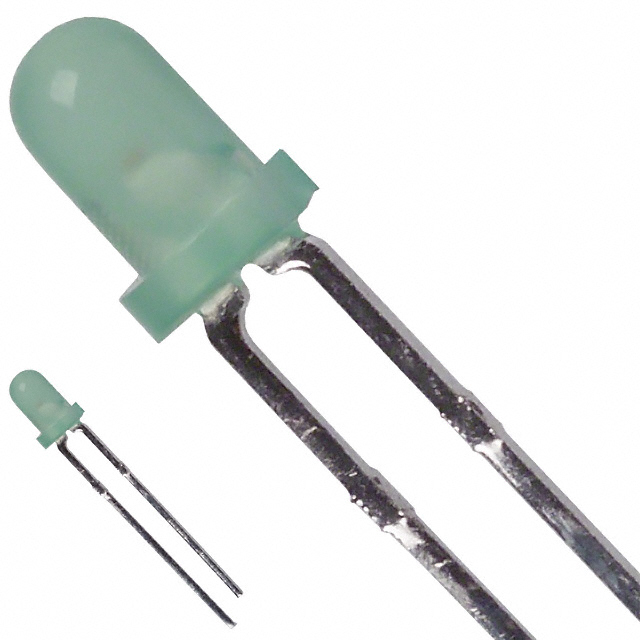

LED GREEN DIFFUSED T-1 T/H

Search across all available documentation for this part.

Active

Lumex Opto/Components Inc.

LED GREEN DIFFUSED T-1 T/H

Technical Specifications

Parameters and characteristics commom to parts in this series

LED RED DIFFUSED T-1 T/H

Part	Lens Size	Lens Size	Wavelength - Peak	Lens Transparency	Mounting Type	Configuration	Color	Supplier Device Package	Package / Case	Lens Style	Current - Test	Voltage - Forward (Vf) (Typ)	Viewing Angle	Height (Max) [Max] [z]	Millicandela Rating	Lens Color
Lumex Opto/Components Inc. SSL-LX3052ID	3 mm	T-1	635 nm	Diffused	Through Hole	Standard	Red	T-1	Radial	Round with Domed Top	20 mA	2.1 V	60 °	5.25 mm	30 mcd	Red
Lumex Opto/Components Inc. SSL-LX3052GD	3 mm	T-1	565 nm	Diffused	Through Hole	Standard	Green	T-1	Radial	Round with Domed Top	20 mA	2 V	80 °	5.25 mm	15 mcd	Green
Lumex Opto/Components Inc. SSL-LX3052YD	3 mm	T-1	585 nm	Diffused	Through Hole	Standard	Yellow	T-1	Radial	Round with Domed Top	20 mA	2.1 V	80 °	5.25 mm	15 mcd	Yellow

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Green LED Indication - Discrete 2V Radial

Technical documentation and resources

No documents available
