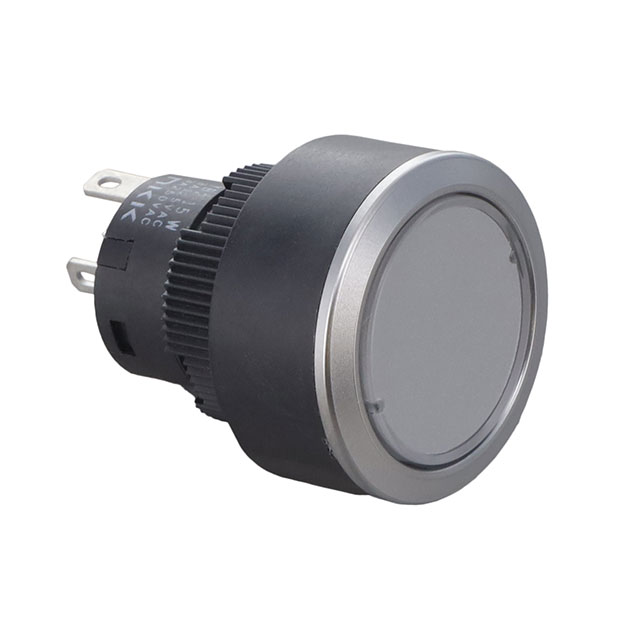

YB215CWCPW01-5F24-JS

Active

NKK SWITCHES

SPDT ON-(ON) ROUND PANEL SEAL BR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

YB215CWCPW01-5F24-JS

Active

NKK SWITCHES

SPDT ON-(ON) ROUND PANEL SEAL BR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 39.71
		10	$ 36.13
		100	$ 30.88
Newark	Each	1	$ 72.08
		5	$ 64.28
		10	$ 62.09
		25	$ 58.66
		50	$ 54.60
		100	$ 48.36
		250	$ 43.37

Description

General part information

YB215C Series

Pushbutton Switch SPDT Standard, Illuminated Panel Mount, Front

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	YB215CWCPW01-5F24-JS	YB215C Series

Actuator Marking	No Marking	No Marking
Actuator Type	Flush, Button, Round	Flush, Button, Round, Plunger for Cap
Circuit	SPDT	SPDT
Color - Actuator/Cap	Silver	Unbrushed Chrome, White, Green, Brushed Chrome, Yellow (White Filter/Diffuser), Clear, Red, Silver
Current Rating (Amps)	3 A	0.4 - 3 A
Electrical Life	100000 Cycles	100000 Cycles
Features	Tactile Feedback	Tactile Feedback
Illumination Type, Color	LED, Green	LED, Green, Amber, Blue, Red, White
Illumination Voltage (Nominal)	24 V	1.9 - 24 VDC
Ingress Protection	IP65 - Dust Tight, Water Resistant	IP65 - Dust Tight, Water Resistant
Mechanical Life	1000000 Cycles	1000000 Cycles
Mounting Type	Panel Mount, Front	Panel Mount, Front
Operating Temperature [Max]	50 °C	50 - 70 °C
Operating Temperature [Min]	-25 °C	-25 °C
Panel Cutout Dimensions	-	21 mm
Panel Cutout Dimensions	-	21 mm
Panel Cutout Dimensions [diameter]	22 mm	22 mm
Switch Function	On-Mom	On-Mom
Termination Style	0.11 in	0.11 in
Termination Style	Quick Connect, Solder	Quick Connect, Solder
Termination Style	2.8 mm	2.8 mm
Type	Illuminated, Standard	Illuminated, Standard
Voltage Rating - AC	125 V	28 - 125 V
Voltage Rating - DC	30 V	28 - 30 V

YB215C Series

STD SIZE PUSHBUTTON/NONILLUMINAT

...

Part	Type	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating - DC	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Termination Style	Termination Style	Termination Style	Features	Switch Function	Electrical Life	Color - Actuator/Cap	Actuator Marking	Ingress Protection	Current Rating (Amps)	Circuit	Illumination Type, Color	Illumination Voltage (Nominal)	Voltage Rating - AC	Mechanical Life	Mounting Type	Actuator Type	Panel Cutout Dimensions [diameter]
NKK SWITCHES YB215CWSPW01-5F12-HB-001	Illuminated, Standard	50 °C	-25 °C	30 V	21 mm	21 mm	0.11 in	Quick Connect, Solder	2.8 mm	Tactile Feedback	On-Mom	100000 Cycles	Unbrushed Chrome, White	No Marking	IP65 - Dust Tight, Water Resistant	3 A	SPDT	Green, LED	12 VDC	125 V	1000000 Cycles	Panel Mount, Front
NKK SWITCHES YB215CWSKW01-5F12-HB-001	Illuminated, Standard	50 °C	-25 °C	30 V	21 mm	21 mm	0.11 in	Quick Connect, Solder	2.8 mm	Tactile Feedback	On-Mom	100000 Cycles	Unbrushed Chrome, White	No Marking	IP65 - Dust Tight, Water Resistant	3 A	SPDT	Green, LED	12 VDC	125 V	1000000 Cycles	Panel Mount, Front
NKK SWITCHES YB215CWCKW01-5F12-FB	Illuminated, Standard	50 °C	-25 °C	30 V			0.11 in	Quick Connect, Solder	2.8 mm	Tactile Feedback	On-Mom	100000 Cycles	Green	No Marking	IP65 - Dust Tight, Water Resistant	3 A	SPDT	Green, LED	12 VDC	125 V	1000000 Cycles	Panel Mount, Front	Button, Flush, Round	22 mm
NKK SWITCHES YB215CWSPG01-N-P	Standard	70 °C	-25 °C	28 V	21 mm	21 mm	0.11 in	Quick Connect, Solder	2.8 mm	Tactile Feedback	On-Mom	100000 Cycles	Brushed Chrome	No Marking	IP65 - Dust Tight, Water Resistant	0.4 VA	SPDT			28 V	1000000 Cycles	Panel Mount, Front
NKK SWITCHES YB215CWCPW01-5F12-HB-004	Illuminated, Standard	50 °C	-25 °C	30 V			0.11 in	Quick Connect, Solder	2.8 mm	Tactile Feedback	On-Mom	100000 Cycles	Unbrushed Chrome, White	No Marking	IP65 - Dust Tight, Water Resistant	3 A	SPDT	Green, LED	12 VDC	125 V	1000000 Cycles	Panel Mount, Front	Button, Flush, Round	22 mm
NKK SWITCHES YB215CWCKW01-5D24-EB	Illuminated, Standard	50 °C	-25 °C	30 V			0.11 in	Quick Connect, Solder	2.8 mm	Tactile Feedback	On-Mom	100000 Cycles	Yellow (White Filter/Diffuser)	No Marking	IP65 - Dust Tight, Water Resistant	3 A	SPDT	Amber, LED	24 V	125 V	1000000 Cycles	Panel Mount, Front	Button, Flush, Round	22 mm
NKK SWITCHES YB215CWCPW01-5F12-HB-001	Illuminated, Standard	50 °C	-25 °C	30 V			0.11 in	Quick Connect, Solder	2.8 mm	Tactile Feedback	On-Mom	100000 Cycles	Unbrushed Chrome, White	No Marking	IP65 - Dust Tight, Water Resistant	3 A	SPDT	Green, LED	12 VDC	125 V	1000000 Cycles	Panel Mount, Front	Button, Flush, Round	22 mm
NKK SWITCHES YB215CWCKW01	Standard	70 °C	-25 °C	30 V			0.11 in	Quick Connect, Solder	2.8 mm	Tactile Feedback	On-Mom	100000 Cycles		No Marking	IP65 - Dust Tight, Water Resistant	3 A	SPDT			125 V	1000000 Cycles	Panel Mount, Front	Plunger for Cap	22 mm
NKK SWITCHES YB215CWCPW01-6G-JB	Illuminated, Standard	50 °C	-25 °C	30 V			0.11 in	Quick Connect, Solder	2.8 mm	Tactile Feedback	On-Mom	100000 Cycles	Clear	No Marking	IP65 - Dust Tight, Water Resistant	3 A	SPDT	Blue, LED	3.3 VDC	125 V	1000000 Cycles	Panel Mount, Front	Button, Flush, Round	22 mm
NKK SWITCHES YB215CWCKW01-N-FB	Standard	70 °C	-25 °C	30 V			0.11 in	Quick Connect, Solder	2.8 mm	Tactile Feedback	On-Mom	100000 Cycles	Green	No Marking	IP65 - Dust Tight, Water Resistant	3 A	SPDT			125 V	1000000 Cycles	Panel Mount, Front	Button, Flush, Round	22 mm
