1914030
ActivePhoenix Contact

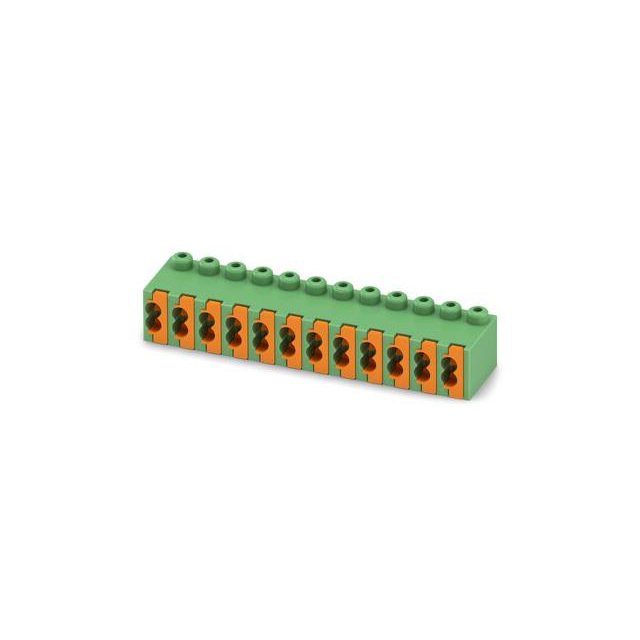

TERM BLK 12P SIDE ENT 3.5MM PCB
1914030
ActivePhoenix Contact
TERM BLK 12P SIDE ENT 3.5MM PCB
Description
General part information
1914030
12 Position Wire to Board Terminal Block Horizontal with Board 0.138" (3.50mm) Through Hole
Technical Specifications
Parameters and characteristics for this part
| Specification | 1914030 |
|---|---|
| Color | Green |
| Contact Material - Plating | Tin Plated |
| Current | 4 A |
| Housing Material | PBT, Polybutylene Terephthalate |
| Mating Orientation | Horizontal with Board |
| Mounting Type | Through Hole |
| Number of Levels | 1 |
| Pitch | 0.138 in |
| Positions Per Level | 12 |
| Voltage | 300 V |
| Wire Gauge (AWG) (Max) | 28 AWG |
| Wire Gauge (AWG) (Min) | 19.5 AWG |
| Wire Termination | Spring Cage, Screwless, Tension Clamp |
