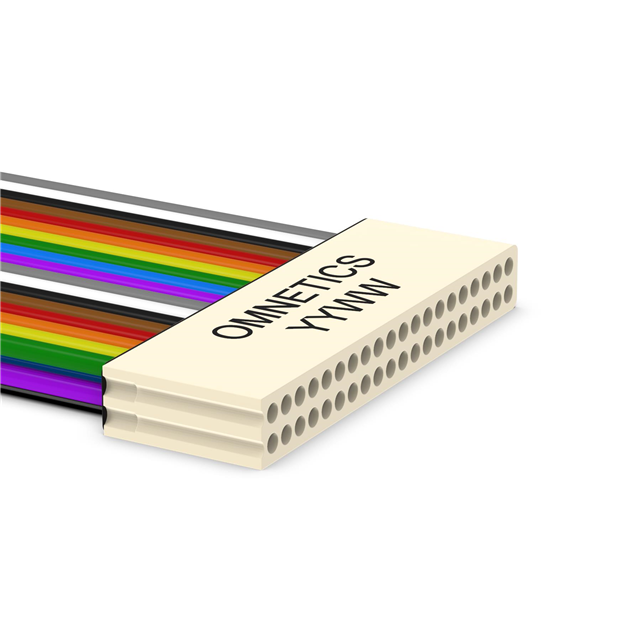

A79028-001

Active

Omnetics

36 POSITION DUAL ROW MALE NANO-M

Search across all available documentation for this part.

Active

Omnetics

36 POSITION DUAL ROW MALE NANO-M

Technical Specifications

Parameters and characteristics for this part

Specification	A79028-001

Cable Termination	Crimp
Color	Multiple, Individual
Connector Type	Plug to Individual Wire Leads
Contact Finish	Gold
Contact Finish Thickness	50 µin
Contact Finish Thickness	1.27 µm
Length [x]	457.2 mm
Length [x]	1.5 ft
Number of Positions	36
Number of Rows	2
Pitch - Connector	0.025 in
Pitch - Connector	0.64 mm
Shielding	Unshielded

36 POSITION DUAL ROW MALE NANO-M

Part	Number of Rows	Length [x]	Length [x]	Connector Type	Shielding	Pitch - Connector	Pitch - Connector	Contact Finish	Number of Positions	Cable Termination	Contact Finish Thickness	Contact Finish Thickness	Color
Omnetics A79028-001	2	457.2 mm	1.5 ft	Plug to Individual Wire Leads	Unshielded	0.025 in	0.64 mm	Gold	36	Crimp	50 µin	1.27 µm	Individual, Multiple

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

36 Position Cable Assembly Rectangular Plug to Individual Wire Leads 1.50' (457.20mm)
