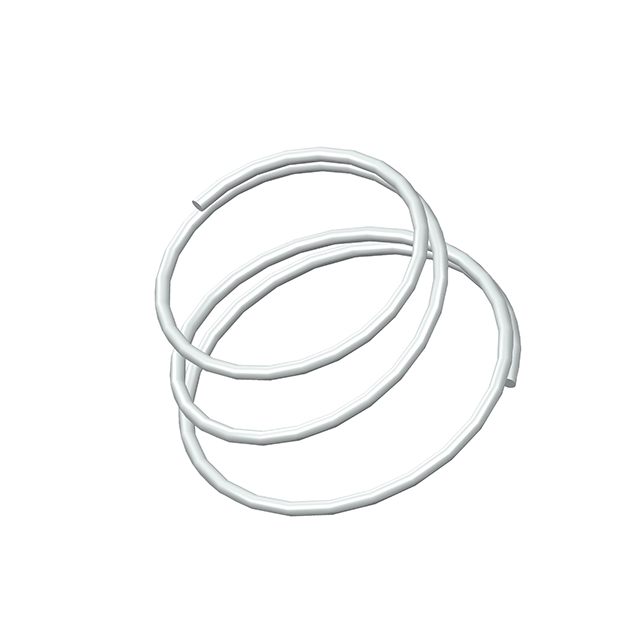

TA-2330CS
ActiveCentury Spring Corp
LO= 0.938, SO= 0.75, W= 0.039
TA-2330CS
ActiveCentury Spring Corp
LO= 0.938, SO= 0.75, W= 0.039
Description
General part information
TA-2330CS
LO= 0.938, SO= 0.75, W= 0.039
Technical Specifications
Parameters and characteristics for this part
| Specification | TA-2330CS |
|---|---|
| Diameter - Inside | 0.67 in |
| Diameter - Large Outside | 0.938 in |
| Diameter - Small Outside | 0.75 in |
| End Style | Closed |
| Finish | None |
| Free Length | 0.56 in |
| Material | Stainless Steel |
| Rate (lbs/in) | 5.5 lbs/in |
| Type | Tapered |
| Wire Diameter | 0.039 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
