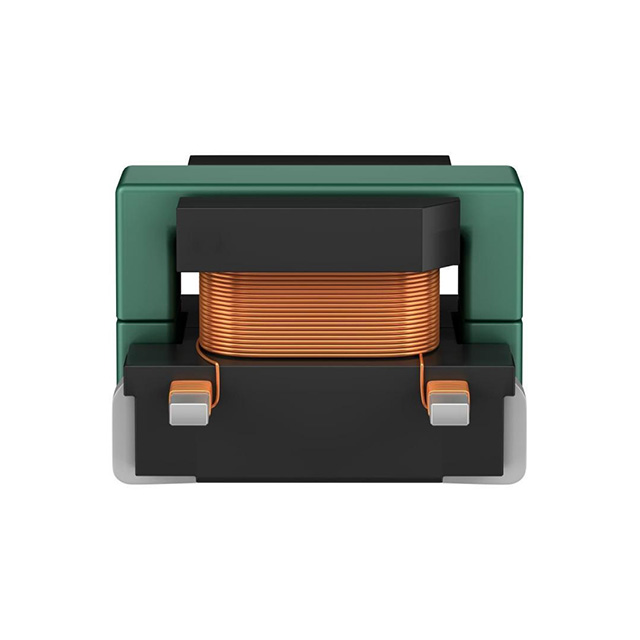

B82801A1185A150
ActiveEPCOS - TDK Electronics
CURR SENSE XFMR 1:150 SMD
B82801A1185A150
ActiveEPCOS - TDK Electronics
CURR SENSE XFMR 1:150 SMD
Description
General part information
B82801A1185A150
1:150 Current Sense Transformer 50kHz ~ 1MHz 2.5mOhm Primary, 21Ohm Secondary 1.84 mH Surface Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | B82801A1185A150 |
|---|---|
| DC Resistance (DCR) (Primary) | 2.5 mOhm |
| DC Resistance (DCR) (Secondary) | 21 Ohm |
| DC Resistance Type | Primary, Secondary |
| ET (Volt-Time) | 43.2 VµS |
| Frequency Range (Max) | 1 MHz |
| Frequency Range (Min) | 50 kHz |
| Height - Seated (Max) | 0.138 in |
| Inductance | 1.84 mH |
| Mounting Type | Surface Mount |
| Size / Dimension Length | 0.185 in |
| Size / Dimension Width | 0.138 in |
| Termination Style | J Lead |
| Turns Ratio - Primary | 1 |
| Turns Ratio - Secondary | 150 |
| Type | Invasive |
