25162 BK199

Active

ALPHA WIRE

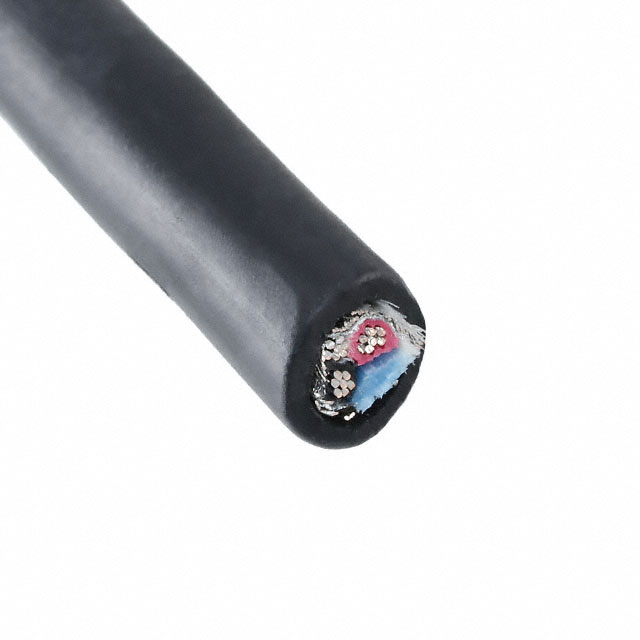

CABLE 2COND 18AWG BLK SHLD FEET

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE 2COND 18AWG BLK SHLD FEET

Technical Specifications

Parameters and characteristics for this part

Specification	25162 BK199

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	16
Conductor Strand [custom]	30 AWG
Features	Rip Cord, Biological Compatibility, Drain Wire
Jacket (Insulation) Diameter [diameter]	6.45 mm
Jacket (Insulation) Diameter [diameter]	0.254 in
Jacket (Insulation) Material	Polyurethane (PU)
Jacket Color	Black
Length	Enter Number of Feet in Order Quantity
Number of Conductors	2
Operating Temperature [Max]	90 °C
Operating Temperature [Min]	-30 ░C
Ratings	UL Style 20668, ISO 10993
Shield Coverage	70 %, 100 %
Shield Material	Copper, Tinned, Suprashield®
Shield Type	Foil, Braid
Spool Size	1000 ft
Spool Size	304.8 m
Voltage	300 V
Wire Gauge	18 AWG

CABLE 2COND 18AWG BLK SHLD FEET

Part	Conductor Insulation	Conductor Material	Features	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Voltage	Number of Conductors	Wire Gauge	Shield Material	Jacket (Insulation) Material	Length	Shield Type	Jacket Color	Conductor Strand [custom]	Conductor Strand [custom]	Cable Type	Ratings	Spool Size	Spool Size	Shield Coverage
ALPHA WIRE 25162 BK199	Poly-Vinyl Chloride (PVC)	Copper, Tinned	Biological Compatibility, Drain Wire, Rip Cord	6.45 mm	0.254 in	-30 ░C	90 °C	300 V	2	18 AWG	Copper, Tinned, Suprashield®	Polyurethane (PU)	Enter Number of Feet in Order Quantity	Braid, Foil	Black	16	30 AWG	Multi-Conductor	ISO 10993, UL Style 20668	1000 ft	304.8 m	70 %, 100 %

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 Conductor Multi-Conductor Cable Black 18 AWG Foil, Braid Enter Number of Feet in Order Quantity
