FMCN44092
ActiveFairview Microwave

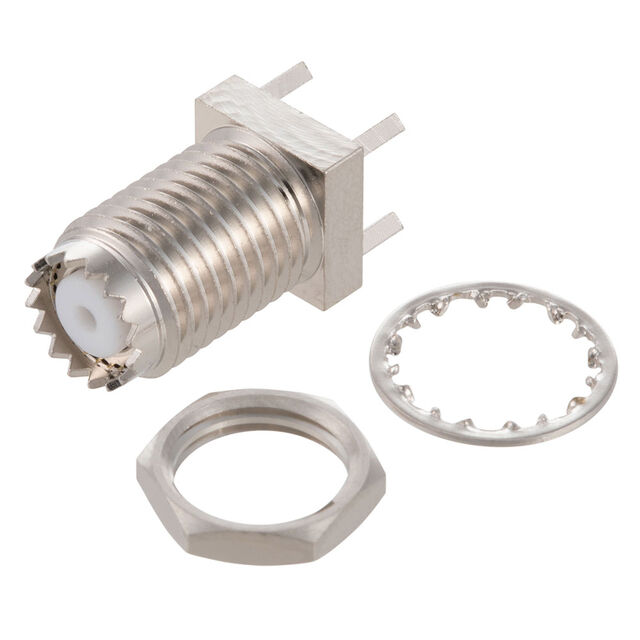

CONN JACK SOLDER MINI UHF
FMCN44092
ActiveFairview Microwave
CONN JACK SOLDER MINI UHF
Description
General part information
FMCN44092
UHF Connector Jack, Female Socket 50 Ohms Panel Mount, Through Hole Solder
Technical Specifications
Parameters and characteristics for this part
| Specification | FMCN44092 |
|---|---|
| Body Finish | Nickel |
| Body Material | Brass |
| Center Contact Material | Brass |
| Center Contact Plating | Gold |
| Connector Style | UHF |
| Connector Type | Jack, Female Socket |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Threaded |
| Frequency - Max | 2.5 GHz |
| Housing Color | Silver |
| Impedance | 50 Ohm |
| Mounting Feature | Bulkhead, Front Side Nut |
| Mounting Type | Panel Mount, Through Hole |
| Number of Ports | 1 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -55 °C |
| Shield Termination | Solder |
| Voltage Rating | 335 V |
