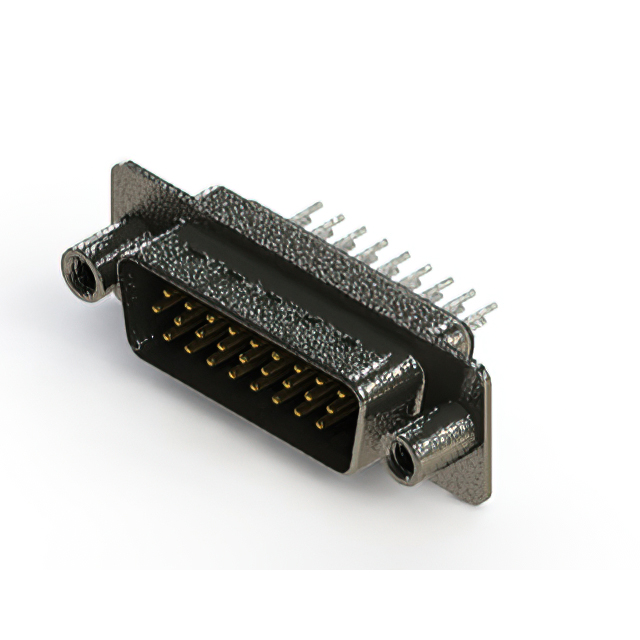

CONN D-SUB HD PLUG 26P PNL MNT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

637-026-330-269

Active

EDAC Inc.

CONN D-SUB HD PLUG 26P PNL MNT

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	637-026-330-269

Color	Black
Connector Style	High Density, D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	15 µin
Contact Finish Thickness	0.38 µm
Contact Material	Brass
Contact Type	Signal
Current Rating (Amps)	3 A
Dielectric Material	Polyester Thermoplastic
Features	Grounding Indents, Shielded
Flange Feature	Board Side, 4-40
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Panel Mount
Number of Positions	26
Number of Rows	3
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout	2
Shell Size, Connector Layout	(DA, A) High Density
Termination	Solder

637-026 Series

...

Part	Features	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Material Flammability Rating	Flange Feature	Shell Material, Finish	Shell Size, Connector Layout	Shell Size, Connector Layout	Number of Rows	Dielectric Material	Current Rating (Amps)	Connector Style	Contact Type	Contact Finish	Connector Type	Color	Mounting Type	Termination	Contact Finish Thickness
EDAC Inc. 637-026-632-066	Board Lock Grounding Indents Shielded	26	0.76 Ám	30 Áin	-55 °C	125 °C	Brass	UL94 V-0	Housing/Shell (4-40)	Nickel Plated Steel	2	(DA A) High Density	3	Polyester Thermoplastic	3 A	D-Sub High Density	Signal	Gold	Male Pins Plug	Black	Free Hanging (In-Line)
EDAC Inc. 637-026-330-069	Grounding Indents Shielded	26	0.38 µm	15 µin	-55 °C	125 °C	Brass	UL94 V-0	4-40 Board Side	Nickel Plated Steel	2	(DA A) High Density	3	Polyester Thermoplastic	3 A	D-Sub High Density	Signal	Gold	Male Pins Plug	Black	Panel Mount Through Hole	Solder
EDAC Inc. 637-026-330-269	Grounding Indents Shielded	26	0.38 µm	15 µin	-55 °C	125 °C	Brass	UL94 V-0	4-40 Board Side		2	(DA A) High Density	3	Polyester Thermoplastic	3 A	D-Sub High Density	Signal	Gold	Male Pins Plug	Black	Panel Mount Through Hole	Solder
EDAC Inc. 637-026-232-241	Grounding Indents Shielded	26			-55 °C	85 °C	Brass	UL94 V-0	Housing/Shell (Unthreaded)		2	(DA A) High Density	3	Polyester Thermoplastic	3 A	D-Sub High Density	Signal	Gold	Male Pins Plug	Black	Free Hanging (In-Line)		Flash
EDAC Inc. 637-026-630-247	Board Lock Grounding Indents Shielded	26	0.76 Ám	30 Áin	-55 °C	85 °C	Brass	UL94 V-0	4-40		2	(DA A) High Density	3	Polyester Thermoplastic	3 A	D-Sub High Density	Signal	Gold	Male Pins Plug	Black	Panel Mount Through Hole	Solder
EDAC Inc. 637-026-332-246	Board Lock Grounding Indents Shielded	26	0.38 µm	15 µin	-55 °C	85 °C	Brass	UL94 V-0	Housing/Shell (4-40)		2	(DA A) High Density	3	Polyester Thermoplastic	3 A	D-Sub High Density	Signal	Gold	Male Pins Plug	Black	Free Hanging (In-Line)
EDAC Inc. 637-026-230-042	Grounding Indents Shielded	26			-55 °C	85 °C	Brass	UL94 V-0	Housing/Shell (4-40)	Nickel Plated Steel	2	(DA A) High Density	3	Polyester Thermoplastic	3 A	D-Sub High Density	Signal	Gold	Male Pins Plug	Black	Panel Mount Through Hole	Solder	Flash
EDAC Inc. 637-026-630-061	Grounding Indents Shielded	26	0.76 Ám	30 Áin	-55 °C	125 °C	Brass	UL94 V-0	Housing/Shell (Unthreaded)	Nickel Plated Steel	2	(DA A) High Density	3	Polyester Thermoplastic	3 A	D-Sub High Density	Signal	Gold	Male Pins Plug	Black	Panel Mount Through Hole	Solder
EDAC Inc. 637-026-630-042	Grounding Indents Shielded	26	0.76 Ám	30 Áin	-55 °C	85 °C	Brass	UL94 V-0	Housing/Shell (4-40)	Nickel Plated Steel	2	(DA A) High Density	3	Polyester Thermoplastic	3 A	D-Sub High Density	Signal	Gold	Male Pins Plug	Black	Panel Mount Through Hole	Solder
EDAC Inc. 637-026-332-066	Board Lock Grounding Indents Shielded	26	0.38 µm	15 µin	-55 °C	125 °C	Brass	UL94 V-0	Housing/Shell (4-40)	Nickel Plated Steel	2	(DA A) High Density	3	Polyester Thermoplastic	3 A	D-Sub High Density	Signal	Gold	Male Pins Plug	Black	Free Hanging (In-Line)
