Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 2967141 | 29671 Series |
|---|---|---|
| Approval Agency | cULus, DNV, UL, EAC | cULus, DNV, UL, EAC, UKCA, CE |
| Coil Current | 4.5 mA | 4.5 - 18 mA |
| Coil Resistance | 51.1 kOhms | 51.1 - 1440 kOhms |
| Coil Type | Non Latching | Non Latching |
| Coil Voltage | 230 VAC | 24 - 230 VAC |
| Contact Form | DPDT (2 Form C) | DPDT (2 Form C), DPST-NO (2 Form A) |
| Contact Material | Silver (Ag), Gold (Au) | Silver (Ag), Gold (Au), Silver Nickel (AgNi) |
| Contact Rating (Current) | 50 mA | 6 - 50 mA |
| Features | Lighted Indicator, Socket Included | Lighted Indicator, Socket Included |
| Mounting Type | DIN Rail | DIN Rail |
| Operate Time | 7 ms | 7 - 8 ms |
| Operating Temperature [Max] | 55 °C | 55 - 60 °C |
| Operating Temperature [Min] | -25 °C | -40 - -25 °C |
| Relay Type | General Purpose | General Purpose |
| Release Time | 10 ms | 10 ms |
| Switching Voltage | 36 VDC, 30 VAC | 30 - 250 VDC |
| Termination Style | Screw Terminal | Screw Terminal |
29671 Series

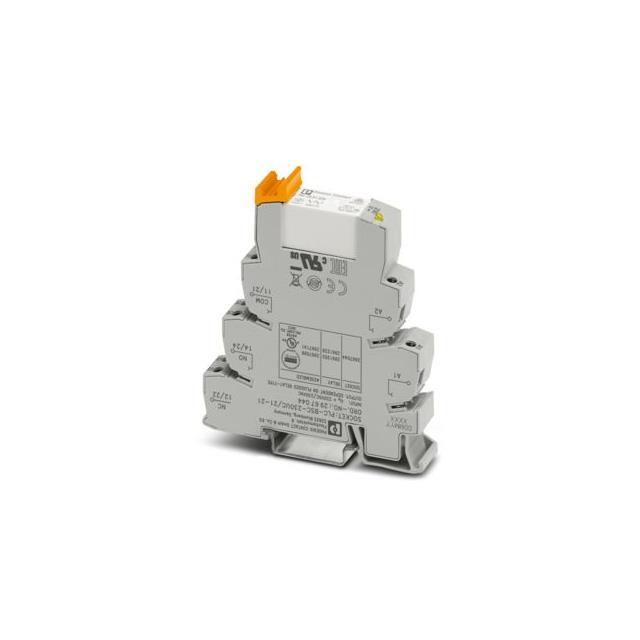

RELAY GEN PURPOSE DPDT 50MA 230V
| Part | Relay Type | Features | Coil Voltage | Release Time | Switching Voltage | Approval Agency | Operate Time | Contact Material | Coil Current | Coil Resistance | Contact Form | Operating Temperature [Max] | Operating Temperature [Min] | Contact Rating (Current) | Coil Type | Mounting Type | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Phoenix Contact 2967141 | General Purpose | Lighted Indicator, Socket Included | 230 VAC | 10 ms | 30 VAC, 36 VDC | cULus, DNV, EAC, UL | 7 ms | Gold (Au), Silver (Ag) | 4.5 mA | 51.1 kOhms | DPDT (2 Form C) | 55 °C | -25 °C | 50 mA | Non Latching | DIN Rail | Screw Terminal |
Phoenix Contact 2967112 | General Purpose | Lighted Indicator, Socket Included | 24 VAC | 10 ms | 30 VAC, 36 VDC | cULus, DNV, EAC, UL | 8 ms | Gold (Au), Silver (Ag) | 17.5 mA | 1371 Ohms | DPDT (2 Form C) | 60 °C | -25 °C | 50 mA | Non Latching | DIN Rail | Screw Terminal |
Phoenix Contact 2967109 | General Purpose | Lighted Indicator, Socket Included | 24 VDC | 10 ms | 250 VAC, 250 VDC | CE, UKCA | 8 ms | Silver Nickel (AgNi) | 18 mA | 1440 Ohms | DPST-NO (2 Form A) | 60 °C | -25 °C | 6 A | Non Latching | DIN Rail | Screw Terminal |
Phoenix Contact 2967125 | General Purpose | Lighted Indicator, Socket Included | 24 VDC | 10 ms | 30 VAC, 36 VDC | cULus, DNV, EAC, UL | 8 ms | Gold (Au), Silver (Ag) | 18 mA | 1333 Ohms | DPDT (2 Form C) | 60 °C | -40 °C | 50 mA | Non Latching | DIN Rail | Screw Terminal |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 10 | $ 40.75 | |
Description
General part information
29671 Series
General Purpose Relay DPDT (2 Form C) DIN Rail
