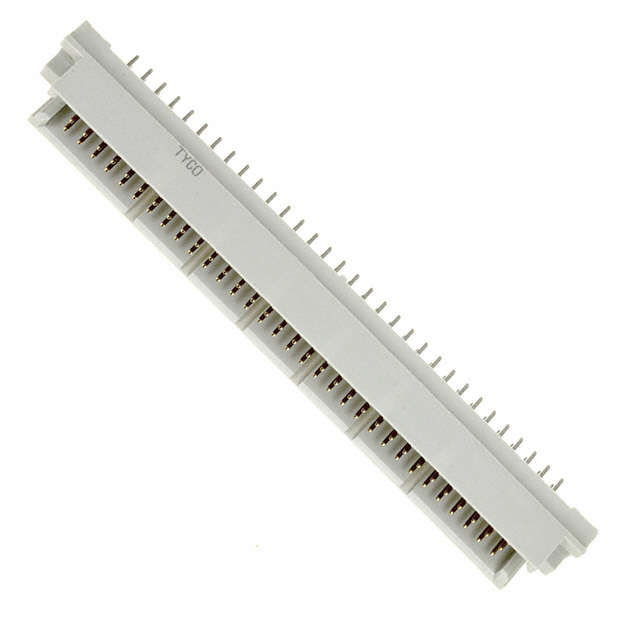

CONN DIN PLUG 96POS PCB GOLD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
2-1393659-8
ActiveTE Connectivity AMP Connectors
CONN DIN PLUG 96POS PCB GOLD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 2-1393659-8 | 1393659 Series |
|---|---|---|
| Connector Type | Plug, Male Pins | Plug, Male Pins |
| Contact Finish | Gold, Gold-Palladium | Gold, Gold-Palladium |
| Material - Insulation | Glass Filled, Polyester, Polybutylene Terephthalate (PBT) | Glass Filled, Polyester, Polybutylene Terephthalate (PBT) |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Through Hole | Through Hole |
| Number of Positions | 96 | 48 - 96 |
| Number of Positions Loaded | All | All |
| Number of Positions Loaded | - | 64 |
| Number of Rows | 3 | 3 |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Pitch [x] | 2.54 mm | 2.54 mm |
| Pitch [x] | 0.1 in | 0.1 in |
| Style | R | R, R/2 (1/2 R) |
| Termination | Solder | Solder |
1393659 Series
CONN DIN PLUG 96POS PCB GOLD
| Part | Mounting Type | Style | Number of Positions | Material - Insulation | Pitch [x] | Pitch [x] | Contact Finish | Operating Temperature [Min] | Operating Temperature [Max] | Connector Type | Material Flammability Rating | Number of Positions Loaded | Termination | Number of Rows | Number of Positions Loaded |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 2-1393659-8 | Through Hole | R | 96 | Glass Filled, Polybutylene Terephthalate (PBT), Polyester | 2.54 mm | 0.1 in | Gold, Gold-Palladium | -55 °C | 125 °C | Male Pins, Plug | UL94 V-0 | All | Solder | 3 | |
TE Connectivity AMP Connectors 4-1393659-7 | Through Hole | R | 96 | Glass Filled, Polybutylene Terephthalate (PBT), Polyester | 2.54 mm | 0.1 in | Gold, Gold-Palladium | -55 °C | 125 °C | Male Pins, Plug | UL94 V-0 | Solder | 3 | 64 | |
TE Connectivity AMP Connectors 3-1393659-9 | Through Hole | R/2 (1/2 R) | 48 | Glass Filled, Polybutylene Terephthalate (PBT), Polyester | 2.54 mm | 0.1 in | Gold, Gold-Palladium | -55 °C | 125 °C | Male Pins, Plug | UL94 V-0 | All | Solder | 3 | |
TE Connectivity AMP Connectors 4-1393659-5 | Through Hole | R | 96 | Glass Filled, Polybutylene Terephthalate (PBT), Polyester | 2.54 mm | 0.1 in | Gold, Gold-Palladium | -55 °C | 125 °C | Male Pins, Plug | UL94 V-0 | All | Solder | 3 |
