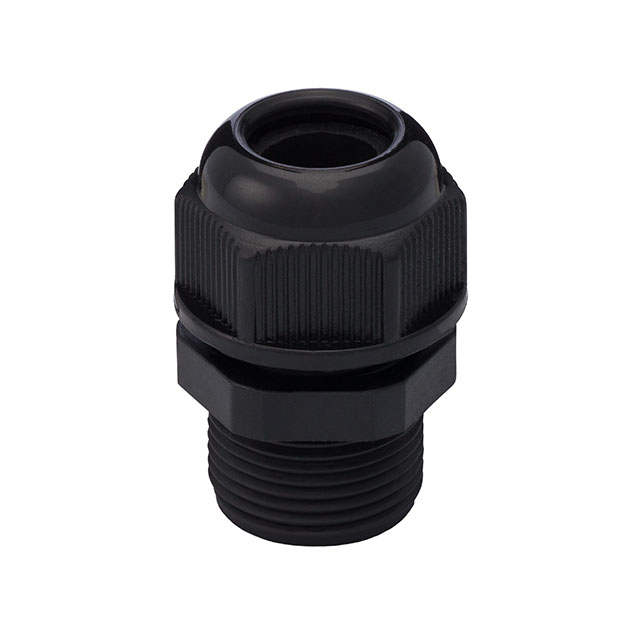

GC3000-D

Active

DAVIES MOLDING

CABLE GLAND 7-12MM 1/2" NPT

Search across all available documentation for this part.

Active

DAVIES MOLDING

CABLE GLAND 7-12MM 1/2" NPT

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	GC3000-D	GC3000 Series

Color	Black	Black
Ingress Protection	IP67 - Dust Tight, Waterproof	IP67 - Dust Tight, Waterproof
Material	-	Polyamide (PA66), Nylon 6/6
Outside Cable Diameter (Max)	-	18.03 mm
Outside Cable Diameter (Max) [Max] [diameter]	0.472 in	0.472 in
Outside Cable Diameter (Max) [Max] [diameter]	12 mm	0.71 - 12 in
Outside Cable Diameter (Min)	7 mm	7 mm
Outside Cable Diameter (Min)	-	13.97 mm
Outside Cable Diameter (Min) [Min] [diameter]	0.276 in	0.276 - 0.55 in
Thread Length	0.55 in	0.55 in
Thread Length	13.97 mm	13.97 mm
Thread Size	1/2" NPT	3/4 NPT, 1/2" NPT
Type	Cable Gland	Cable Gland

CABLE GLND 13.97-18.03MM 3/4"NPT

Part	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Material	Ingress Protection	Thread Length	Thread Length	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Type	Thread Size	Color	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Min)
DAVIES MOLDING GC3000-G	13.97 mm	0.55 in	Polyamide (PA66), Nylon 6/6	IP67 - Dust Tight, Waterproof	0.55 in	13.97 mm	0.71 in	18.03 mm	Cable Gland	3/4 NPT	Black
DAVIES MOLDING GC3000-D		0.276 in		IP67 - Dust Tight, Waterproof	0.55 in	13.97 mm	12 mm		Cable Gland	1/2" NPT	Black	0.472 in	7 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Gland Polyamide (PA6), Nylon 6 1/2" NPT Black
