8956.2C
ActiveAltech Corporation

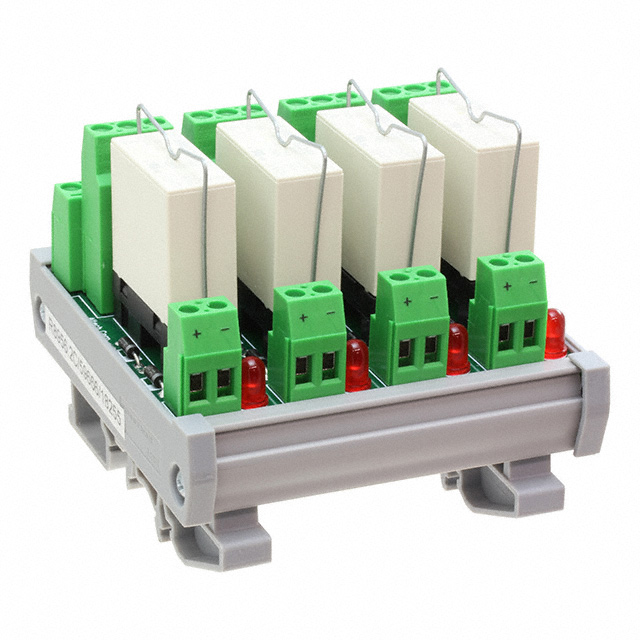

RM2G4 4 CHANNEL SAFETY RELAY MOD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
8956.2C
ActiveAltech Corporation
RM2G4 4 CHANNEL SAFETY RELAY MOD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 8956.2C | 8956 Series |
|---|---|---|
| Coil Current | 29.3 mA | 20 - 29.3 mA |
| Coil Power | 700 mW | 700 mW |
| Coil Resistance | 820 Ohms | 820 - 1440 Ohms |
| Coil Type | - | Non Latching |
| Coil Voltage | 24 VDC | 24 VDC |
| Contact Form | DPDT (2 Form C) | DPDT (2 Form C) |
| Contact Material | Gold (Au), Silver Tin Oxide (AgSnO) | Silver Nickel (AgNi), Gold (Au), Silver Tin Oxide (AgSnO) |
| Contact Rating (Current) | 8 A | 8 A |
| Features | - | Socket Included |
| Load - Max Switching | - | 192 - 2000 W |
| Mounting Type | DIN Rail | DIN Rail |
| Must Operate Voltage | 19.2 VDC | 16.8 - 19.2 VDC |
| Operate Time | 15 ms | 15 ms |
| Operating Temperature [Max] | 70 °C | 70 - 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Relay Type | - | General Purpose |
| Release Time | 12 ms | 12 ms |
| Switching Voltage | - | 24 - 250 VAC |
| Switching Voltage [Max] | 250 VDC, 400 VAC | 250 - 400 VDC |
| Termination Style | Screw Terminal | Screw Terminal |
8956 Series
RELAY GEN PURPOSE DPDT 8A 24V
| Part | Coil Current | Contact Form | Operating Temperature [Max] | Operating Temperature [Min] | Load - Max Switching | Must Operate Voltage | Relay Type | Features | Coil Resistance | Coil Voltage | Contact Rating (Current) | Termination Style | Mounting Type | Switching Voltage | Coil Type | Contact Material | Release Time | Coil Power | Operate Time | Switching Voltage [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Altech Corporation 8956.2 | 20 mA | DPDT (2 Form C) | 85 °C | -40 °C | 192 W, 2000 VA | 16.8 VDC | General Purpose | Socket Included | 1440 Ohms | 24 VDC | 8 A | Screw Terminal | DIN Rail | 24 VDC, 250 VAC | Non Latching | Silver Nickel (AgNi) | ||||
Altech Corporation 8956.2C | 29.3 mA | DPDT (2 Form C) | 70 °C | -40 °C | 19.2 VDC | 820 Ohms | 24 VDC | 8 A | Screw Terminal | DIN Rail | Gold (Au), Silver Tin Oxide (AgSnO) | 12 ms | 700 mW | 15 ms | 250 VDC, 400 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 228.27 | |
| 10 | $ 199.39 | |||
| 25 | $ 188.95 | |||
| 50 | $ 181.41 | |||
Description
General part information
8956 Series
RM2G4 4 CHANNEL SAFETY RELAY MOD
Documents
Technical documentation and resources
