10-3/4"X60YDS

Active

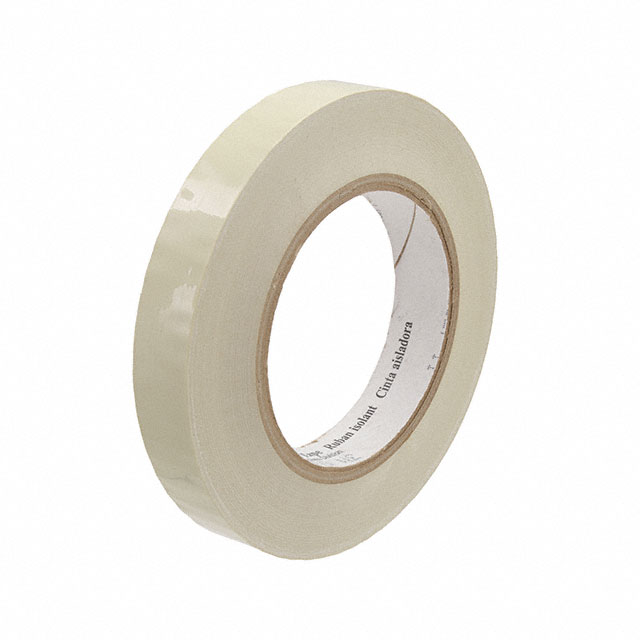

TAPE ELECTRICAL WHITE 3/4"X60YDS

Search across all available documentation for this part.

Active

TAPE ELECTRICAL WHITE 3/4"X60YDS

Technical Specifications

Parameters and characteristics for this part

Specification	10-3/4"X60YDS

Adhesive	Rubber
Backing, Carrier	Epoxy Film
Color	White
Length	60 yds
Length	55 m
Length	180 ft
Shelf Life	60 Months
Shelf Life Start	Date of Manufacture
Storage/Refrigeration Temperature [Max]	27 °C
Storage/Refrigeration Temperature [Max]	81 °F
Storage/Refrigeration Temperature [Min]	10 °C
Storage/Refrigeration Temperature [Min]	10 °C
Tape Type	Electrical
Temperature Range	155 °C
Temperature Range	311 °F
Thickness	0.127 mm
Thickness	5 mils
Thickness	0.005 in
Thickness - Backing, Carrier	3.5 mils
Thickness - Backing, Carrier	0.089 mm
Thickness - Backing, Carrier	0.0035 in
Width	0.75 in
Width	19.05 mm
Width	0.75 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

TAPE ELECTRICAL WHITE 3/4"X60YDS

Part	Color	Adhesive	Temperature Range	Temperature Range	Length	Length	Length	Backing, Carrier	Width	Width	Width	Shelf Life Start	Tape Type	Thickness	Thickness	Thickness	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Shelf Life	Storage/Refrigeration Temperature [Max]	Storage/Refrigeration Temperature [Max]	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Min]
3M 10-3/4"X60YDS	White	Rubber	155 °C	311 °F	60 yds	55 m	180 ft	Epoxy Film	0.75 in	19.05 mm	0.75 in	Date of Manufacture	Electrical	0.127 mm	5 mils	0.005 in	3.5 mils	0.089 mm	0.0035 in	60 Months	27 °C	81 °F	10 °C	10 °C

General part information

Electrical Tape Rubber Adhesive White 0.75" (19.05mm) 3/4" X 180' (55.0m) 60 yds
