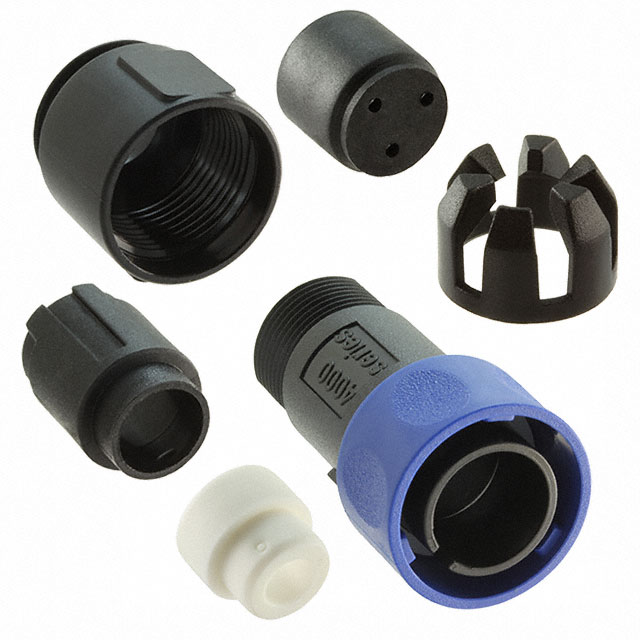

PXP4010/03P/3035 - PXP4010/03P/3035

PXP4010/03P/3035

Active
BULGIN LIMITED

CIRCULAR CONNECTOR, IP66, IP68 & IP69K, BUCCANEER 4000 SERIES, STRAIGHT PLUG, 3 CONTACTS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTechnical Data Sheet EN4000 Series IP69X Test Cert+5
PXP4010/03P/3035 - PXP4010/03P/3035

PXP4010/03P/3035

Active
BULGIN LIMITED

CIRCULAR CONNECTOR, IP66, IP68 & IP69K, BUCCANEER 4000 SERIES, STRAIGHT PLUG, 3 CONTACTS

Deep-Dive with AI

DocumentsTechnical Data Sheet EN4000 Series IP69X Test Cert+5

Technical Specifications

Parameters and characteristics for this part

SpecificationPXP4010/03P/3035
Connector TypePlug Housing
Contact ShapeCircular
Contact TypeCrimp and Solder Cup
Fastening TypeBayonet Lock
FeaturesCoupling Nut, UV Resistant, Backshell
Housing ColorBlack, Blue
Ingress ProtectionIP69K, IP66, IP68, Dust Tight, Water Resistant, Waterproof
Material Flammability RatingUL94 V-0
Mounting TypeFree Hanging (In-Line)
NoteContacts Not Included
Number of Positions3
Operating Temperature [Max]120 °C
Operating Temperature [Min]-40 °C
OrientationKeyed
Primary MaterialPlastic
Shell MaterialPolycarbonate/Polybutylene Terephthalate (PBT), Halogen Free
ShieldingUnshielded
TypeFor Male Pins

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 16.58
10$ 14.69
25$ 14.13
50$ 13.56
100$ 12.81
250$ 11.68
500$ 10.93
NewarkEach 50$ 13.06
100$ 12.36
250$ 11.27

Description

General part information

PXP4010/03P/3035

3 (Power) Position Circular Connector Plug Housing Free Hanging (In-Line) Backshell, Coupling Nut, UV Resistant
