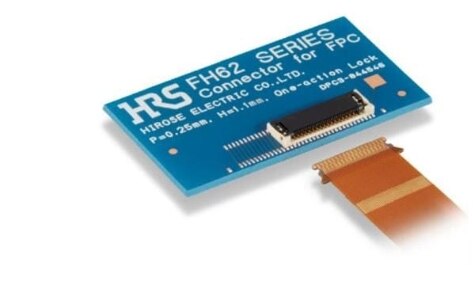

Specification	FH62-61S-0.25SHW(99)

Actuator Color	Black
Actuator Material	Nylon, Glass Filled, Polyamide (PA)
Cable End Type	Notched
Connector/Contact Type	Contacts, Top
Contact Finish	Gold
Contact Finish Thickness	1.97 µin
Contact Material	Copper Alloy
Current Rating	0.25 A
FFC, FCB Thickness	0.3 mm
Flat Flex Type	FPC
Height Above Board	0.043 in
Housing Color	Beige
Housing Material	LCP, Liquid Crystal Polymer, Halogen Free
Locking Feature	Flip Lock, Backlock
Material Flammability Rating	UL94 V-0
Mating Cycles	10 cycles
Mounting Type	Right Angle, Surface Mount
Number of Positions	61
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-55 °C
Pitch	0.01 in
Termination	Solder
Voltage Rating	30 V

FH62 Series

FFC & FPC Connectors 61P, Receptacle, 0.25mm Pitch, 1.1mm Hig

Part	Cable End Type	FFC, FCB Thickness	Material Flammability Rating	Number of Positions	Height Above Board	Voltage Rating	Locking Feature	Contact Finish	Pitch	Flat Flex Type	Operating Temperature (Min)	Operating Temperature (Max)	Housing Material	Mounting Type	Termination	Connector/Contact Type	Contact Material	Actuator Material	Contact Finish Thickness	Current Rating	Actuator Color	Mating Cycles	Housing Color
Hirose Electric Co Ltd FH62-21S-0.25SHW(10)	Notched	0.3 mm	UL94 V-0	21	0.043 in	30 V	Backlock Flip Lock	Gold	0.01 in	FPC	-55 °C	85 °C	Halogen Free LCP Liquid Crystal Polymer	Right Angle Surface Mount	Solder	Contacts Top	Copper Alloy	Glass Filled Nylon Polyamide (PA)	1.97 µin	0.25 A	Black	10 cycles	Beige
Hirose Electric Co Ltd FH62-55S-0.25SHW(99)	Notched	0.3 mm	UL94 V-0	55	0.043 in	30 V	Backlock Flip Lock	Gold	0.01 in	FPC	-55 °C	85 °C	Halogen Free LCP Liquid Crystal Polymer	Right Angle Surface Mount	Solder	Contacts Top	Copper Alloy	Glass Filled Nylon Polyamide (PA)	1.97 µin	0.25 A	Black	10 cycles	Beige
Hirose Electric Co Ltd FH62-39S-0.25SHW(99)	Notched	0.3 mm	UL94 V-0	39	0.043 in	30 V	Backlock Flip Lock	Gold	0.01 in	FPC	-55 °C	85 °C	Halogen Free LCP Liquid Crystal Polymer	Right Angle Surface Mount	Solder	Contacts Top	Copper Alloy	Glass Filled Nylon Polyamide (PA)	1.97 µin	0.25 A	Black	10 cycles	Beige
Hirose Electric Co Ltd FH62-55S-0.25SHW(10)	Notched	0.3 mm	UL94 V-0	55	0.043 in	30 V	Backlock Flip Lock	Gold	0.01 in	FPC	-55 °C	85 °C	Halogen Free LCP Liquid Crystal Polymer	Right Angle Surface Mount	Solder	Contacts Top	Copper Alloy	Glass Filled Nylon Polyamide (PA)	1.97 µin	0.25 A	Black	10 cycles	Beige
Hirose Electric Co Ltd FH62-17S-0.25SHW(10)	Notched	0.3 mm	UL94 V-0	17	0.043 in	30 V	Backlock Flip Lock	Gold	0.01 in	FPC	-55 °C	85 °C	Halogen Free LCP Liquid Crystal Polymer	Right Angle Surface Mount	Solder	Contacts Top	Copper Alloy	Glass Filled Nylon Polyamide (PA)	1.97 µin	0.25 A	Black	10 cycles	Beige
Hirose Electric Co Ltd FH62-13S-0.25SHW(10)	Notched	0.3 mm	UL94 V-0	13	0.043 in	30 V	Backlock Flip Lock	Gold	0.01 in	FPC	-55 °C	85 °C	Halogen Free LCP Liquid Crystal Polymer	Right Angle Surface Mount	Solder	Contacts Top	Copper Alloy	Glass Filled Nylon Polyamide (PA)	1.97 µin	0.25 A	Black	10 cycles	Beige
Hirose Electric Co Ltd FH62-21S-0.25SHW(99)	Notched	0.3 mm	UL94 V-0	21	0.043 in	30 V	Backlock Flip Lock	Gold	0.01 in	FPC	-55 °C	85 °C	Halogen Free LCP Liquid Crystal Polymer	Right Angle Surface Mount	Solder	Contacts Top	Copper Alloy	Glass Filled Nylon Polyamide (PA)	1.97 µin	0.25 A	Black	10 cycles	Beige
Hirose Electric Co Ltd FH62-61S-0.25SHW(10)	Notched	0.3 mm	UL94 V-0	61	0.043 in	30 V	Backlock Flip Lock	Gold	0.01 in	FPC	-55 °C	85 °C	Halogen Free LCP Liquid Crystal Polymer	Right Angle Surface Mount	Solder	Contacts Top	Copper Alloy	Glass Filled Nylon Polyamide (PA)	1.97 µin	0.25 A	Black	10 cycles	Beige
Hirose Electric Co Ltd FH62-31S-0.25SHW(10)	Notched	0.3 mm	UL94 V-0	31	0.043 in	30 V	Backlock Flip Lock	Gold	0.01 in	FPC	-55 °C	85 °C	Halogen Free LCP Liquid Crystal Polymer	Right Angle Surface Mount	Solder	Contacts Top	Copper Alloy	Glass Filled Nylon Polyamide (PA)	1.97 µin	0.25 A	Black	10 cycles	Beige
Hirose Electric Co Ltd FH62-41S-0.25SHW(10)	Notched	0.3 mm	UL94 V-0	41	0.043 in	30 V	Backlock Flip Lock	Gold	0.01 in	FPC	-55 °C	85 °C	Halogen Free LCP Liquid Crystal Polymer	Right Angle Surface Mount	Solder	Contacts Top	Copper Alloy	Glass Filled Nylon Polyamide (PA)	1.97 µin	0.25 A	Black	10 cycles	Beige
