ERCD-040-40.00-TEU-TED-1-B

Active

Samtec Inc.

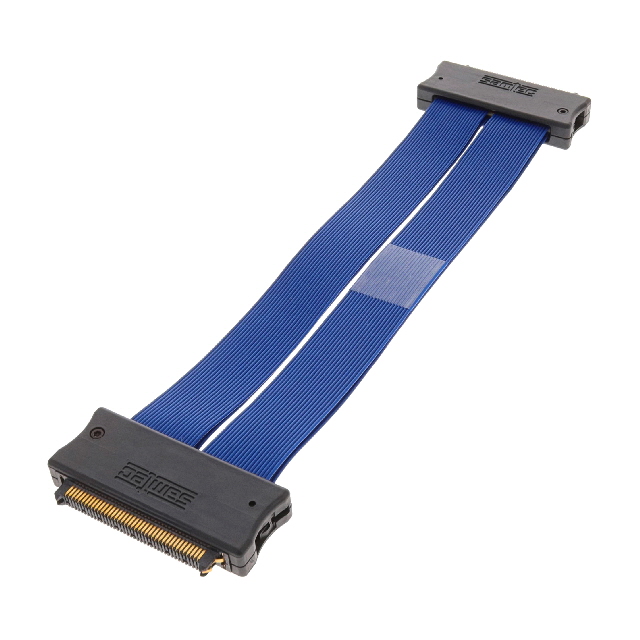

CBL ASSEM M-M 80POS 40" HDR

Search across all available documentation for this part.

Active

Samtec Inc.

CBL ASSEM M-M 80POS 40" HDR

Technical Specifications

Parameters and characteristics for this part

Specification	ERCD-040-40.00-TEU-TED-1-B

Cable Termination	IDC
Color	Ribbon, Blue
Connector Type	Card Edge to Card Edge, Reversed
Contact Finish	Gold
Contact Finish Thickness	1.27 µm
Contact Finish Thickness	50 µin
Length [x]	1.02 m
Length [x]	3.33 '
Number of Positions	80
Number of Rows	2
Pitch - Cable	0.016 in
Pitch - Cable	0.4 mm
Pitch - Connector	0.8 mm
Pitch - Connector	0.031 in
Shielding	Unshielded

Part	Shielding	Number of Positions	Color	Pitch - Cable	Pitch - Cable	Pitch - Connector	Pitch - Connector	Contact Finish Thickness	Contact Finish Thickness	Length [x]	Length [x]	Number of Rows	Contact Finish	Cable Termination	Connector Type
Samtec Inc. ERCD-040-18.00-TEU-TED-1-D	Unshielded	80	Blue Ribbon	0.016 in	0.4 mm	0.8 mm	0.031 in	50 µin	1.27 µm	457.2 mm	1.5 ft	2	Gold	IDC	Card Edge to Card Edge Reversed
Samtec Inc. ERCD-040-24.00-TEU-TED-1-D	Unshielded	80	Blue Ribbon	0.016 in	0.4 mm	0.8 mm	0.031 in	50 µin	1.27 µm	609.6 mm	2 '	2	Gold	IDC	Card Edge to Card Edge Reversed
Samtec Inc. ERCD-040-40.00-TEU-TED-1-B	Unshielded	80	Blue Ribbon	0.016 in	0.4 mm	0.8 mm	0.031 in	50 µin	1.27 µm	1.02 m	3.33 '	2	Gold	IDC	Card Edge to Card Edge Reversed

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 245.16

General part information

80 Position Cable Assembly Rectangular Card Edge to Card Edge, Reversed 3.33' (1.02m)
