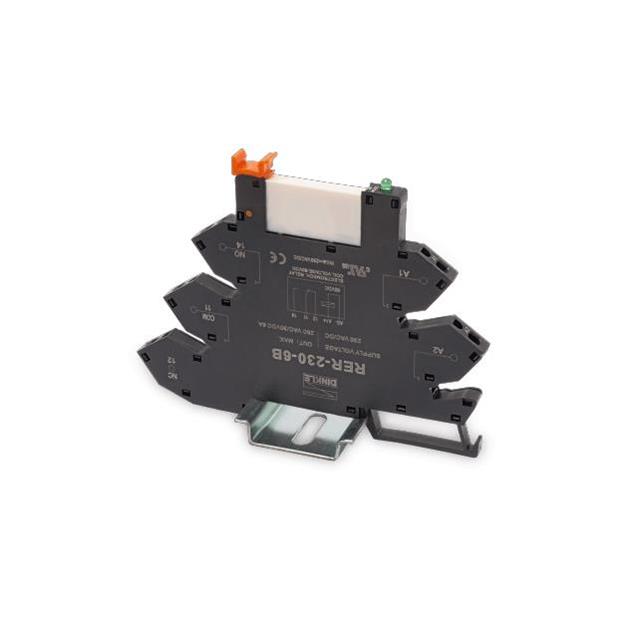

RER-230-6B

Active

Dinkle Corporation, USA

RELAY GEN PURPOSE SPDT 6A 60V

Search across all available documentation for this part.

Active

Dinkle Corporation, USA

RELAY GEN PURPOSE SPDT 6A 60V

Technical Specifications

Parameters and characteristics for this part

Specification	RER-230-6B

Coil Current	3.7 mA
Coil Resistance	62.162 kOhms
Coil Type	Non Latching
Coil Voltage	230 VAC
Contact Form	SPDT (1 Form C)
Contact Material	Silver Nickel (AgNi)
Contact Rating (Current)	6 A
Features	Lighted Indicator, Surge Protection
Mounting Type	DIN Rail
Operate Time	8 ms
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Relay Type	General Purpose
Release Time	4 ms
Switching Voltage [Max]	30 VDC, 250 VAC
Termination Style	Spring Terminal

RELAY GEN PURPOSE SPDT 6A 60V

Part	Features	Coil Current	Contact Material	Switching Voltage [Max]	Coil Type	Operate Time	Contact Rating (Current)	Relay Type	Operating Temperature [Max]	Operating Temperature [Min]	Coil Voltage	Mounting Type	Coil Resistance	Contact Form	Release Time	Termination Style
Dinkle Corporation, USA RER-230-6B	Lighted Indicator, Surge Protection	3.7 mA	Silver Nickel (AgNi)	30 VDC, 250 VAC	Non Latching	8 ms	6 A	General Purpose	85 °C	-40 °C	230 VAC	DIN Rail	62.162 kOhms	SPDT (1 Form C)	4 ms	Spring Terminal

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

General Purpose Relay SPDT (1 Form C) 230VAC/DC Coil DIN Rail
