A1000.1/4NPT.050

Active

American Electrical Inc.

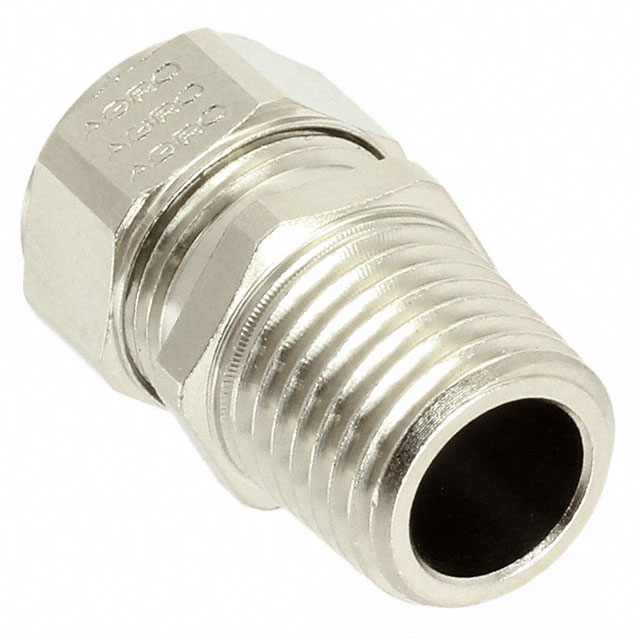

CABLE GLAND 3.5-5MM 1/4" NPT

Search across all available documentation for this part.

Active

American Electrical Inc.

CABLE GLAND 3.5-5MM 1/4" NPT

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	A1000.1/4NPT.050	1000.1/4 Series

Color	Silver	Silver
Includes	Seal	Seal
Ingress Protection	IP68, IP69K	IP68, IP69K
Material	Brass, Nickel Plated	Brass, Nickel Plated
Operating Temperature [Max]	100 °C	100 °C
Operating Temperature [Min]	-40 °C	-40 °C
Outside Cable Diameter (Max) [Max] [diameter]	5 mm	5 - 6.5 mm
Outside Cable Diameter (Max) [Max] [diameter]	0.197 in	0.197 - 0.256 in
Outside Cable Diameter (Min) [Min]	3.5 mm	3.5 - 5 mm
Outside Cable Diameter (Min) [Min]	0.138 in	0.138 - 0.197 in
Thread Length	0.472 in	0.472 in
Thread Length	12 mm	12 mm
Type	Cable Gland	Cable Gland

CABLE GLAND 3.5-5MM 1/4" NPT

Part	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Min) [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Type	Color	Ingress Protection	Thread Length	Thread Length	Includes	Material	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]
American Electrical Inc. A1000.1/4NPT.050	3.5 mm	0.138 in	100 °C	-40 °C	Cable Gland	Silver	IP68, IP69K	0.472 in	12 mm	Seal	Brass, Nickel Plated	5 mm	0.197 in
American Electrical Inc. A1000.1/4NPT.065	5 mm	0.197 in	100 °C	-40 °C	Cable Gland	Silver	IP68, IP69K	0.472 in	12 mm	Seal	Brass, Nickel Plated	6.5 mm	0.256 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	50	$ 9.03

General part information

Cable Gland Brass, Nickel Plated 1/4" NPT Silver
