Description
General part information

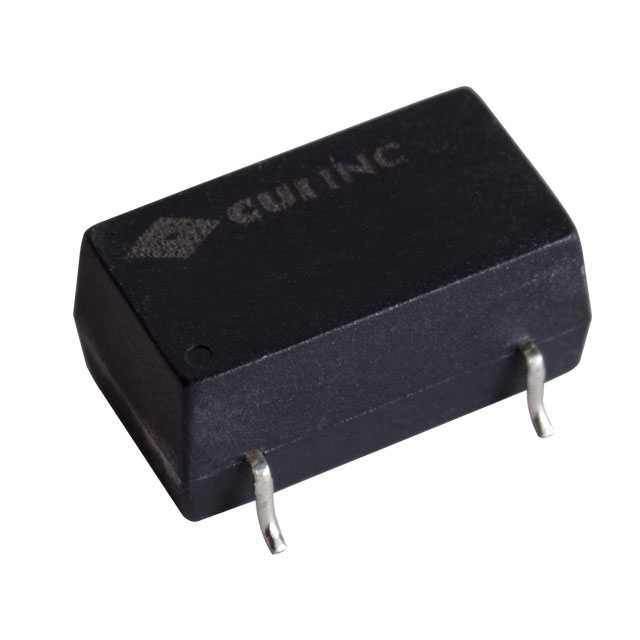

V7801-1000-SMT-TR
Linear Regulator Replacement DC DC Converter 1 Output 1.5V 1A 5V - 18V Input
Technical Specifications
Parameters and characteristics for this part
| Specification | V7801-1000-SMT-TR |
|---|---|
| Applications | ITE (Commercial) |
| Control Features | Active High, Enable |
| Current - Output (Max) | 1 A |
| Features | OCP, SCP, Remote On/Off, OTP |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package Leads | 6 Leads |
| Package Name | 10-SMD |
| Power (Watts) | 2 w |
| Size / Dimension Height | 0.29 in |
| Size / Dimension Length | 0.6 in |
| Size / Dimension Width | 0.33 in |
| Type | Linear Regulator Replacement |
| Voltage - Input (Max) | 18 V |
| Voltage - Input (Min) | 5 V |
| Voltage - Output 1 | 1.5 V |
