104893-1

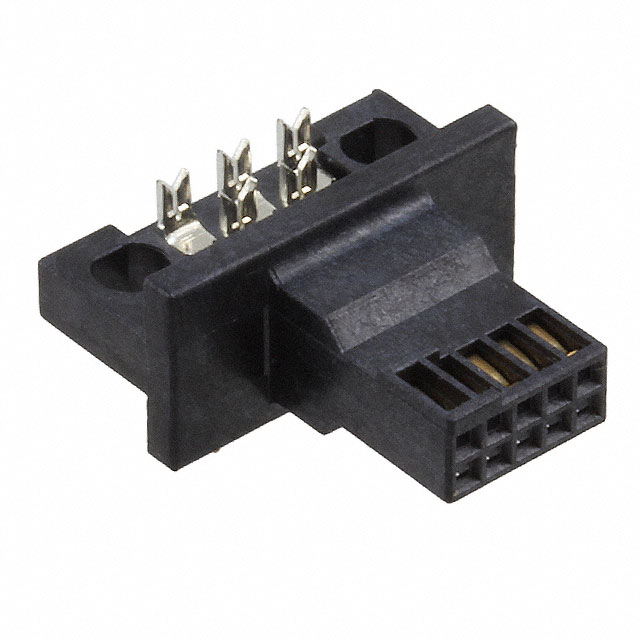

ActiveTE Connectivity AMP Connectors
CONN RCPT 10POS IDC 28AWG GOLD
Deep-Dive with AI
Search across all available documentation for this part.
104893-1
ActiveTE Connectivity AMP Connectors
CONN RCPT 10POS IDC 28AWG GOLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 104893-1 | 104893 Series |
|---|---|---|
| Cable Termination | IDC | IDC |
| Color | Black | Black |
| Connector Type | Receptacle | Receptacle |
| Contact Finish | Gold | Gold |
| Contact Finish Thickness | 0.76 Ám | 0.76 Ám |
| Contact Finish Thickness | 30 Áin | 30 Áin |
| Contact Type | Female Socket | Female Socket |
| Features | Closed End | Closed End |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Number of Positions | 10 | 10 - 90 |
| Number of Rows | 2 | 2 |
| Pitch [x] | 0.05 in | 0.05 in |
| Pitch [x] | 1.27 mm | 1.27 mm |
| Row Spacing | 1.27 mm | 1.27 mm |
| Row Spacing | 0.05 in | 0.05 in |
| Wire Gauge | 28 AWG | 28 AWG |
| Wire Type | Ribbon Cable | Ribbon Cable |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1700 | $ 5.23 | |
104893 Series
CONN RCPT 10POS IDC 28AWG GOLD
| Part | Wire Type | Mounting Type | Pitch [x] | Pitch [x] | Wire Gauge | Contact Type | Contact Finish | Contact Finish Thickness | Contact Finish Thickness | Connector Type | Row Spacing | Row Spacing | Color | Number of Rows | Number of Positions | Features | Cable Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 104893-1 | Ribbon Cable | Free Hanging (In-Line) | 0.05 in | 1.27 mm | 28 AWG | Female Socket | Gold | 0.76 Ám | 30 Áin | Receptacle | 1.27 mm | 0.05 in | Black | 2 | 10 | Closed End | IDC |
TE Connectivity AMP Connectors 104893-9 | Ribbon Cable | Free Hanging (In-Line) | 0.05 in | 1.27 mm | 28 AWG | Female Socket | Gold | 0.76 Ám | 30 Áin | Receptacle | 1.27 mm | 0.05 in | Black | 2 | 90 | Closed End | IDC |
TE Connectivity AMP Connectors 104893-3 | Ribbon Cable | Free Hanging (In-Line) | 0.05 in | 1.27 mm | 28 AWG | Female Socket | Gold | 0.76 Ám | 30 Áin | Receptacle | 1.27 mm | 0.05 in | Black | 2 | 30 | Closed End | IDC |
TE Connectivity AMP Connectors 5-104893-2 | Ribbon Cable | Free Hanging (In-Line) | 0.05 in | 1.27 mm | 28 AWG | Female Socket | Gold | 0.76 Ám | 30 Áin | Receptacle | 1.27 mm | 0.05 in | Black | 2 | 20 | Closed End | IDC |
TE Connectivity AMP Connectors 104893-4 | Ribbon Cable | Free Hanging (In-Line) | 0.05 in | 1.27 mm | 28 AWG | Female Socket | Gold | 0.76 Ám | 30 Áin | Receptacle | 1.27 mm | 0.05 in | Black | 2 | 40 | Closed End | IDC |
TE Connectivity AMP Connectors 104893-6 | Ribbon Cable | Free Hanging (In-Line) | 0.05 in | 1.27 mm | 28 AWG | Female Socket | Gold | 0.76 Ám | 30 Áin | Receptacle | 1.27 mm | 0.05 in | Black | 2 | 60 | Closed End | IDC |
TE Connectivity AMP Connectors 5-104893-1 | Ribbon Cable | Free Hanging (In-Line) | 0.05 in | 1.27 mm | 28 AWG | Female Socket | Gold | 0.76 Ám | 30 Áin | Receptacle | 1.27 mm | 0.05 in | Black | 2 | 10 | Closed End | IDC |
TE Connectivity AMP Connectors 5-104893-7 | Ribbon Cable | Free Hanging (In-Line) | 0.05 in | 1.27 mm | 28 AWG | Female Socket | Gold | 0.76 Ám | 30 Áin | Receptacle | 1.27 mm | 0.05 in | Black | 2 | 70 | Closed End | IDC |
TE Connectivity AMP Connectors 5-104893-6 | Ribbon Cable | Free Hanging (In-Line) | 0.05 in | 1.27 mm | 28 AWG | Female Socket | Gold | 0.76 Ám | 30 Áin | Receptacle | 1.27 mm | 0.05 in | Black | 2 | 60 | Closed End | IDC |
TE Connectivity AMP Connectors 104893-5 | Ribbon Cable | Free Hanging (In-Line) | 0.05 in | 1.27 mm | 28 AWG | Female Socket | Gold | 0.76 Ám | 30 Áin | Receptacle | 1.27 mm | 0.05 in | Black | 2 | 50 | Closed End | IDC |
TE Connectivity AMP Connectors 5-104893-8 | Ribbon Cable | Free Hanging (In-Line) | 0.05 in | 1.27 mm | 28 AWG | Female Socket | Gold | 0.76 Ám | 30 Áin | Receptacle | 1.27 mm | 0.05 in | Black | 2 | 80 | Closed End | IDC |
TE Connectivity AMP Connectors 5-104893-3 | Ribbon Cable | Free Hanging (In-Line) | 0.05 in | 1.27 mm | 28 AWG | Female Socket | Gold | 0.76 Ám | 30 Áin | Receptacle | 1.27 mm | 0.05 in | Black | 2 | 30 | Closed End | IDC |
Description
General part information
104893 Series
10 Position Rectangular Receptacle Connector IDC Gold 28 AWG
