EPY.00.250.NTN

Active

LEMO

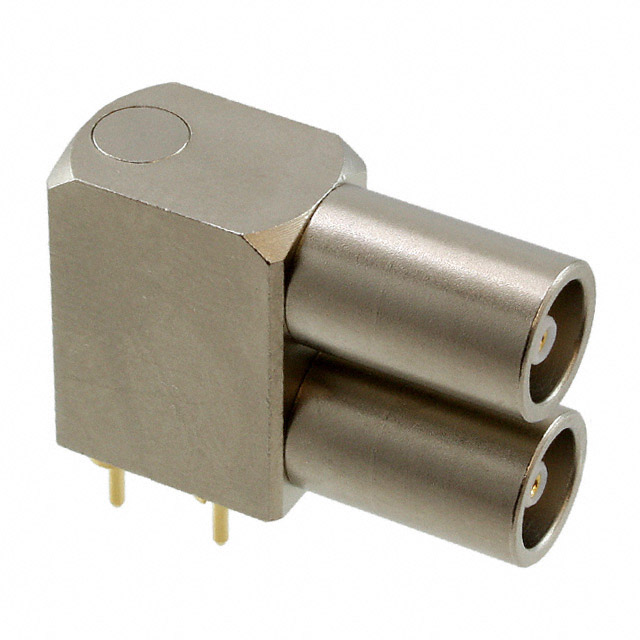

CONN NIMCAMAC RCPT R/A 50OHM PCB

Search across all available documentation for this part.

Active

LEMO

CONN NIMCAMAC RCPT R/A 50OHM PCB

Technical Specifications

Parameters and characteristics for this part

Specification	EPY.00.250.NTN

Body Finish	Nickel
Body Material	Brass
Center Contact Material	Bronze
Center Contact Plating	Gold
Connector Style	NIM-CAMAC CD/N 549
Connector Type	Receptacle, Female Socket
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Push-Pull
Housing Color	Silver
Impedance	50 Ohms
Ingress Protection	IP50
Mating Cycles	5000
Mounting Type	Through Hole, Right Angle
Number of Ports	2
Operating Temperature [Max]	260 ░C
Operating Temperature [Min]	-55 °C
Shield Termination	Solder
Voltage Rating	700 VDC

CONN NIMCAMAC RCPT R/A 50OHM PCB

Part	Number of Ports	Center Contact Material	Body Finish	Impedance	Shield Termination	Contact Termination	Connector Type	Housing Color	Mating Cycles	Dielectric Material	Fastening Type	Body Material	Mounting Type	Voltage Rating	Ingress Protection	Connector Style	Center Contact Plating	Operating Temperature [Min]	Operating Temperature [Max]
LEMO EPY.00.250.NTN	2	Bronze	Nickel	50 Ohms	Solder	Solder	Female Socket, Receptacle	Silver	5000	Polytetrafluoroethylene (PTFE)	Push-Pull	Brass	Through Hole, Right Angle	700 VDC	IP50	NIM-CAMAC CD/N 549	Gold	-55 °C	260 ░C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

NIM-CAMAC CD/N 549 Connector Receptacle, Female Socket 50 Ohms Through Hole, Right Angle Solder
