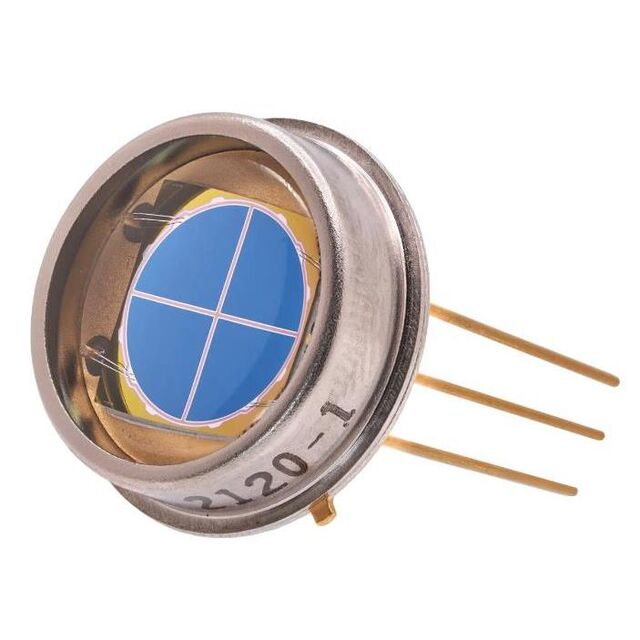

197-23-21-041

Active

Advanced Photonix

SENSOR PHOTODIODE 660NM TO8

Search across all available documentation for this part.

Active

Advanced Photonix

SENSOR PHOTODIODE 660NM TO8

Technical Specifications

Parameters and characteristics for this part

SENSOR PHOTODIODE 660NM TO8

Part	Operating Temperature [Max]	Operating Temperature [Min]	Spectral Range [Min]	Spectral Range [Max]	Active Area	Active Area	Color - Enhanced	Current - Dark (Typ)	Voltage - DC Reverse (Vr) (Max) [Max]	Wavelength	Mounting Type	Viewing Angle	Responsivity @ nm
Advanced Photonix 197-23-21-041	125 °C	-40 °C	350 nm	1100 nm	2.435 mm²	4	Red	1.4 nA	50 V	660 nm	Through Hole	82 °	0.55 A/W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Photodiode 660nm 13ns 82°
