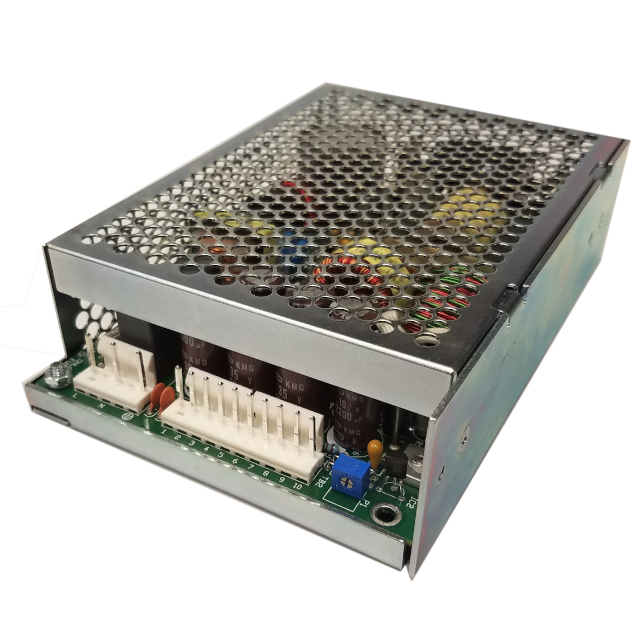

1010024CHCO

Integrated Power Designs

AC/DC CNVRTR 5V 24V 12V -5V 65W

Search across all available documentation for this part.

Integrated Power Designs

AC/DC CNVRTR 5V 24V 12V -5V 65W

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1010024CHCO	1010024 Series

Applications	Industrial, ITE (Commercial)	Industrial, ITE (Commercial)
Approval Agency	CE, UKCA, TUV	CE, UKCA, TUV
Current - Output 1	5 A	5 A
Current - Output 2	1 A	1 A
Current - Output 3	2 A	2 A
Current - Output 4	2 A	2 A
Efficiency	76 %	76 %
Features	Adjustable Output, Universal Input	Adjustable Output, Universal Input
Mounting Type	Chassis Mount	Chassis Mount
Number of Outputs	4	4
Operating Temperature [Max]	50 °C	50 °C
Operating Temperature [Min]	0 °C	0 °C
Size / Dimension [x]	6.23 in	6.23 in
Size / Dimension [x]	158.2 mm	158.2 mm
Size / Dimension [y]	4.25 in	4.25 in
Size / Dimension [y]	108 mm	108 mm
Size / Dimension [z]	1.65 "	1.65 "
Size / Dimension [z]	41.9 mm	41.9 mm
Standard Number	62368-1	62368-1
Type	Enclosed	Enclosed, Chassis
Voltage - Input [Max]	240 VAC	240 VAC
Voltage - Input [Min]	100 VAC	100 VAC
Voltage - Output 1	5 V	5 V
Voltage - Output 2	24 V	24 V
Voltage - Output 3	12 V	12 V
Voltage - Output 4	-5 V	-5 V

AC/DC CNVRTR 5V 24V 12V -5V 65W

Part	Applications	Features	Current - Output 4	Current - Output 2	Efficiency	Voltage - Output 4	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Current - Output 1	Operating Temperature [Min]	Operating Temperature [Max]	Current - Output 3	Number of Outputs	Type	Voltage - Input [Max]	Voltage - Input [Min]	Approval Agency	Voltage - Output 2	Mounting Type	Voltage - Output 1	Standard Number	Voltage - Output 3
Integrated Power Designs 1010024CHCO	Industrial, ITE (Commercial)	Adjustable Output, Universal Input	2 A	1 A	76 %	-5 V	4.25 in	6.23 in	1.65 "	108 mm	158.2 mm	41.9 mm	5 A	0 °C	50 °C	2 A	4	Enclosed	240 VAC	100 VAC	CE, TUV, UKCA	24 V	Chassis Mount	5 V	62368-1	12 V
Integrated Power Designs 1010024CH	Industrial, ITE (Commercial)	Adjustable Output, Universal Input	2 A	1 A	76 %	-5 V	4.25 in	6.23 in	1.65 "	108 mm	158.2 mm	41.9 mm	5 A	0 °C	50 °C	2 A	4	Chassis	240 VAC	100 VAC	CE, TUV, UKCA	24 V	Chassis Mount	5 V	62368-1	12 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Enclosed AC DC Converters 4 Output 5V 24V 12V -5V 100 ~ 240 VAC Input
