06EK3M

Active

Delta Electronics

PWR ENT MOD RCPT IEC320-C14 PNL

Search across all available documentation for this part.

Active

Delta Electronics

PWR ENT MOD RCPT IEC320-C14 PNL

Technical Specifications

Parameters and characteristics for this part

Specification	06EK3M

Accomodates a Fuse	True
Approval Agency	UL, VDE, CSA
Connector Style	IEC 320-C14
Connector Type	Receptacle, Male Blades - Module
Current Rating - Appliance Inlet	6 A
Features	Voltage Selector
Filter Type	Filtered (EMI, RFI) - Commercial, Medical
Fuse Holder, Drawer	Fuse Holder, Twin Fused
Mounting Type	Panel Mount, Flange
Panel Cutout Dimensions [x]	29 mm
Panel Cutout Dimensions [y]	60.2 mm
Switch Features	Switch On-Off
Termination	Quick Connect
Voltage Rating - Appliance Inlet [Max]	250 VAC
Voltage Rating - Appliance Inlet [Min]	115 VAC

PWR ENT MOD RCPT IEC320-C14 PNL

Part	Mounting Type	Filter Type	Fuse Holder, Drawer	Switch Features	Accomodates a Fuse	Termination	Connector Type	Current Rating - Appliance Inlet	Features	Voltage Rating - Appliance Inlet [Min]	Voltage Rating - Appliance Inlet [Max]	Approval Agency	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Connector Style
Delta Electronics 06EK3M	Flange, Panel Mount	Filtered (EMI, RFI) - Commercial, Medical	Fuse Holder, Twin Fused	Switch On-Off		Quick Connect	Receptacle, Male Blades - Module	6 A	Voltage Selector	115 VAC	250 VAC	CSA, UL, VDE	29 mm	60.2 mm	IEC 320-C14

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

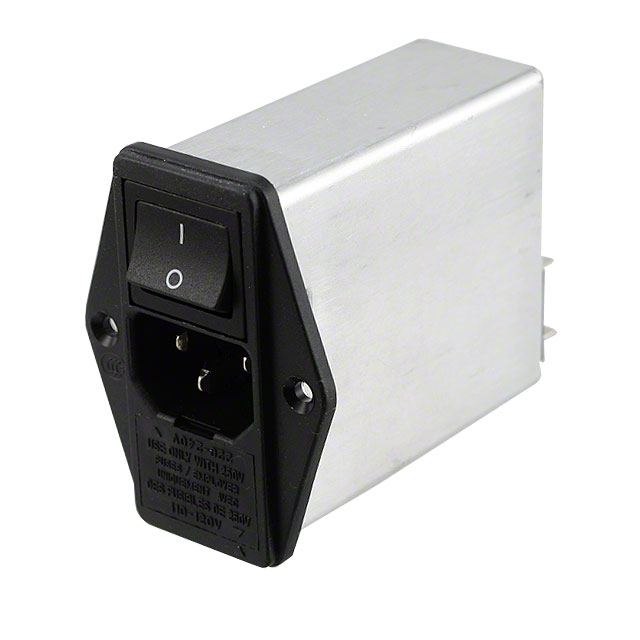

Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Flange
