1414N4PHS16C4

Active

Hammond Manufacturing

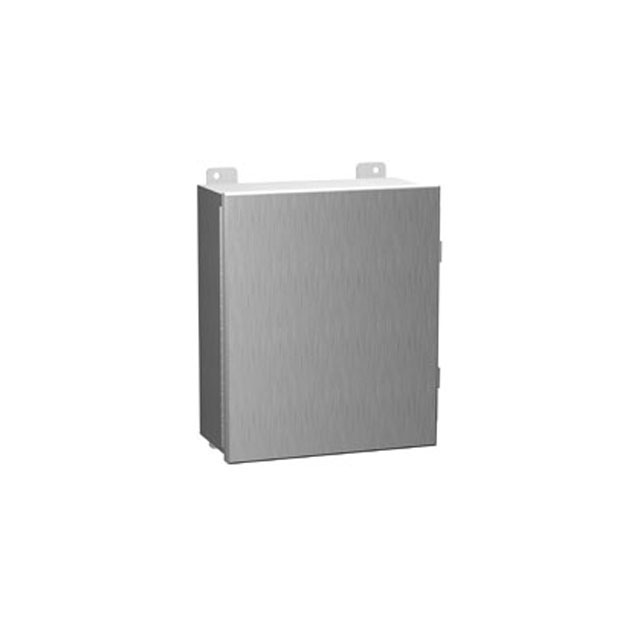

BOX S STL NATURAL 6"L X 4"W

Deep-Dive with AI

Search across all available documentation for this part.

1414N4PHS16C4

Active

Hammond Manufacturing

BOX S STL NATURAL 6"L X 4"W

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 257.03
		5	$ 227.48

Description

General part information

1414 Series

Box Metal, Stainless Steel Natural Hinged Door, Lid 6.000" L x 4.000" W (152.40mm x 101.60mm) X 4.000" (101.60mm)

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1414N4PHS16C4	1414 Series

Area (L x W)	-	48 - 224 in˛
Area (L x W)	-	232 - 1445 cm˛
Area (L x W)	-	36 in²
Area (L x W) [custom]	155 cm²	155 cm²
Area (L x W) [custom]	24 in²	24 in²
Color	Natural	Natural, Gray
Container Type	Box	Box
Design	Hinged Door, Lid	Hinged Door, Lid, Cover Included
Features	Interior Panels	Interior Panels
Height [z]	101.6 mm	88.9 - 254 mm
Height [z]	101.6 mm	3.5 - 101.6 "
Material	-	Metal, Steel, Aluminum
Ratings	UL-508, 4, 12, NEMA 3R, 13, JIC EGP-1-1967, IP66, 4X	UL-508, 4, 12, NEMA 3R, 13, JIC EGP-1-1967, IP66, 4X, NEMA 13, IP54, NEMA 12, NEMA 4
Size / Dimension	-	152.4 - 355.6 mm
Size / Dimension	-	254 - 304.8 mm
Size / Dimension [x]	152.4 mm	152.4 - 406.4 mm
Size / Dimension [x]	6 in	6 - 16 in
Size / Dimension [y]	101.6 mm	101.6 mm
Size / Dimension [y]	4 "	4 - 14 "
Thickness	14 Gauge	0.08 - 14 Gauge
Thickness	-	2.03 mm
Weight	2.3 kg	2.3 - 12.7 kg
Weight	5 lbs	5 - 28 lbs

1414 Series

BOX S STL NATURAL 14"L X 12"W

Part	Area (L x W)	Area (L x W)	Features	Weight	Weight	Design	Color	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Height [z]	Height [z]	Ratings	Container Type	Thickness	Material
Hammond Manufacturing 1414N4PHSSM8	168 in˛	1084 cm˛	Interior Panels	22 lbs	10 kg	Hinged Door, Lid	Natural	355.6 mm	12 "	304.8 mm	14 in	8 "	203.2 mm	12, 13, 4, 4X, IP66, JIC EGP-1-1967, NEMA 3R, UL-508	Box	14 Gauge
Hammond Manufacturing 1414N4PHS16O6	224 in²	1445 cm²	Interior Panels	26 lbs	11.8 kg	Hinged Door, Lid	Natural	406.4 mm	14 in	355.6 mm	16 in	6 in	152.4 mm	12, 13, 4, 4X, IP66, JIC EGP-1-1967, NEMA 3R, UL-508	Box	14 Gauge
Hammond Manufacturing 1414PHJ6	100 in²	645 cm²	Interior Panels	14 lb	6.4 kg	Hinged Door, Lid	Gray	254 mm	10 in	254 mm	10 in	6 in	152.4 mm	IP54, JIC EGP-1-1967, NEMA 12, NEMA 13, UL-508	Box	14 Gauge	Metal, Steel
Hammond Manufacturing 1414PHO10	224 in²	1445 cm²	Interior Panels	26 lbs	11.8 kg	Hinged Door, Lid	Gray	406.4 mm	14 in	355.6 mm	16 in	10 in	254 mm	IP54, JIC EGP-1-1967, NEMA 12, NEMA 13, UL-508	Box	14 Gauge	Metal, Steel
Hammond Manufacturing 1414N4PHS16G	48 in²	310 cm²	Interior Panels	6 lbs	2.7 kg	Hinged Door, Lid	Natural					3.5 in	88.9 mm	12, 13, 4, 4X, IP66, JIC EGP-1-1967, NEMA 3R, UL-508	Box	14 Gauge
Hammond Manufacturing 1414PHRO6	224 in²	1445 cm²	Interior Panels	23 lbs	10.4 kg	Hinged Door, Lid	Gray	406.4 mm	14 in	355.6 mm	16 in	6 in	152.4 mm	IP54, JIC EGP-1-1967, NEMA 12, NEMA 13, UL-508	Box	14 Gauge	Metal, Steel
Hammond Manufacturing 1414N4PHO10	224 in²	1445 cm²	Interior Panels	28 lbs	12.7 kg	Hinged Door, Lid	Gray	406.4 mm	14 in	355.6 mm	16 in	10 in	254 mm	IP66, JIC EGP-1-1967, NEMA 12, NEMA 13, NEMA 3R, NEMA 4, UL-508	Box	14 Gauge	Metal, Steel
Hammond Manufacturing 1414SCI	80 in²	516 cm²	Interior Panels	10 lbs	4.5 kg	Cover Included	Gray	254 mm	8 in	203.2 mm	10 in	101.6 mm	101.6 mm	IP54, JIC EGP-1-1967, NEMA 12, NEMA 13, UL-508	Box	14 Gauge	Metal, Steel
Hammond Manufacturing 1414N4PHILP	80 in²	516 cm²		9 lbs	4.1 kg	Hinged Door, Lid	Gray	254 mm	8 in	203.2 mm	10 in	101.6 mm	101.6 mm	IP66, JIC EGP-1-1967, NEMA 12, NEMA 13, NEMA 3R, NEMA 4, UL-508	Box	14 Gauge	Metal, Steel
Hammond Manufacturing 1414PHG	48 in²	310 cm²	Interior Panels	6 lbs	2.7 kg	Hinged Door, Lid	Gray					3.5 in	88.9 mm	IP54, JIC EGP-1-1967, NEMA 12, NEMA 13, UL-508	Box	14 Gauge	Metal, Steel
