796330-1

Active

TE Connectivity AMP Connectors

CONN RCPT HSG FMALE 16PS INLINE

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN RCPT HSG FMALE 16PS INLINE

Technical Specifications

Parameters and characteristics for this part

Specification	796330-1

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Size	16, 8
Contact Type	Crimp
Housing Color	Black
Ingress Protection	IP67, IP65
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions [custom]	4
Number of Positions [x]	12
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Orientation	Keyed
Shielding	Unshielded
Type	For Female Sockets

CONN RCPT HSG FMALE 16PS INLINE

Part	Insert Material	Orientation	Number of Positions [x]	Number of Positions [custom]	Contact Shape	Contact Size	Operating Temperature [Max]	Operating Temperature [Min]	Material Flammability Rating	Contact Type	Note	Ingress Protection	Housing Color	Shielding	Type	Connector Type	Mounting Type
TE Connectivity AMP Connectors 796330-1	Thermoplastic	Keyed	12	4	Circular	8, 16	105 ░C	-55 °C	UL94 V-0	Crimp	Contacts Not Included	IP65, IP67	Black	Unshielded	For Female Sockets	Receptacle Housing	Free Hanging (In-Line)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

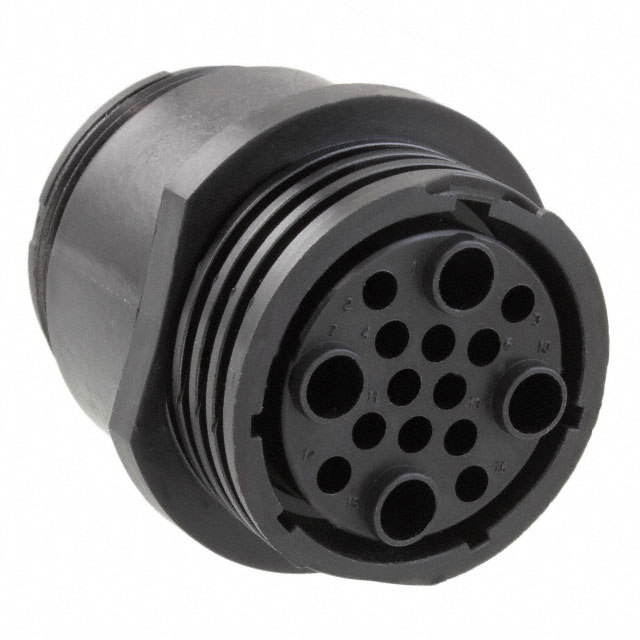

16 (12 + 4 Power) Position Circular Connector Receptacle Housing Free Hanging (In-Line)
