0828771
ActivePhoenix Contact

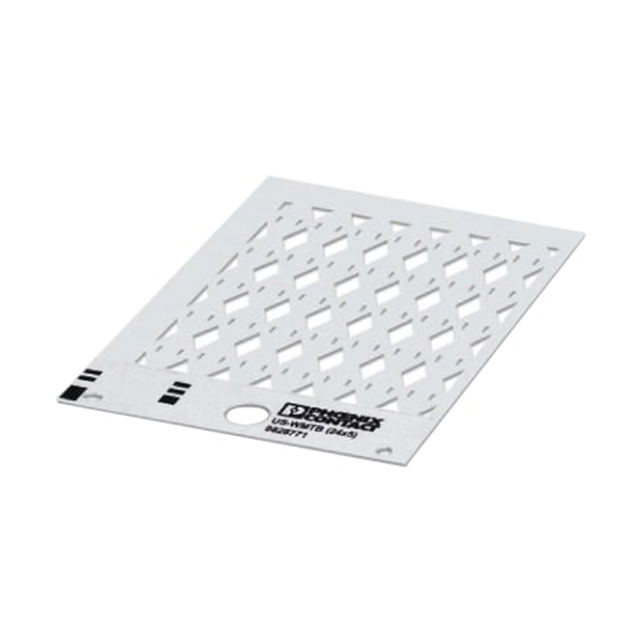

WIRE MARKER WHITE CARD UNLABEL
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
0828771
ActivePhoenix Contact
WIRE MARKER WHITE CARD UNLABEL
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 0828771 | US-WMTB Series |
|---|---|---|
| Cable Diameter | - | 0.157 - 0.512 in |
| Cable Diameter | - | 4 - 13 mm |
| Color | White | Red, White, Yellow, Violet, Blue |
| Legend | - | Blank |
| Material | PVC | PVC, Poly-Vinyl Chloride (PVC) |
| Operating Temperature [Max] | 80 C | 80 C |
| Operating Temperature [Min] | -30 ░C | -30 ░C |
| Size | - | 14 - 60 mm |
| Size | - | 0.55 - 2.36 in |
| Size | - | 5 - 24 mm |
| Size | - | 0.2 - 0.94 in |
| Type | - | Wire Marker, Cable Tie, Wire Marker, Clip-On |
US-WMTB Series
CABLE MARKERS PRE-MARKED CARD THREAD ON POLYVINYL CHLORIDE RED
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Color | Material | Legend | Type | Cable Diameter [diameter] | Cable Diameter [diameter] | Size [y] | Size [y] | Size [x] | Size [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
Phoenix Contact 0829334 | -30 ░C | 80 C | Red | |||||||||
Phoenix Contact 0828771 | -30 ░C | 80 C | White | PVC | ||||||||
Phoenix Contact 0828959 | -30 ░C | 80 C | Yellow | PVC | Blank | Wire Marker, Cable Tie | 0.512 in | 13 mm | 29 mm | 1.14 in | 16 mm | 0.63 in |
Phoenix Contact 0829321 | -30 ░C | 80 C | Poly-Vinyl Chloride (PVC) | Blank | Wire Marker, Clip-On | 0.512 in | 13 mm | 14 mm | 0.55 in | 24 mm | 0.94 " | |
Phoenix Contact 0829323 | -30 ░C | 80 C | Violet | Poly-Vinyl Chloride (PVC) | Blank | Wire Marker, Clip-On | 0.512 in | 13 mm | 24 mm | 0.94 " | 5 mm | 0.2 " |
Phoenix Contact 0829324 | -30 ░C | 80 C | Blue | Poly-Vinyl Chloride (PVC) | Blank | Wire Marker, Clip-On | 0.512 in | 13 mm | 14 mm | 0.55 in | 24 mm | 0.94 " |
Phoenix Contact 0829335 | -30 ░C | 80 C | PVC | Blank | Wire Marker, Cable Tie | 0.157 in | 4 mm | 60 mm | 2.36 in | 15 mm | 0.59 in | |
Phoenix Contact 0829337 | -30 ░C | 80 C | Violet | PVC | Blank | Wire Marker, Cable Tie | 0.157 in | 4 mm | 60 mm | 2.36 in | 15 mm | 0.59 in |
Phoenix Contact 0829338 | -30 ░C | 80 C | Blue | |||||||||
Phoenix Contact 0828960 | -30 ░C | 80 C | Yellow | PVC | Blank | Wire Marker, Cable Tie | 0.512 in | 13 mm | 60 mm | 2.36 in | 15 mm | 0.59 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 7.65 | |
| 10 | $ 6.94 | |||
Description
General part information
US-WMTB Series
White PVC
