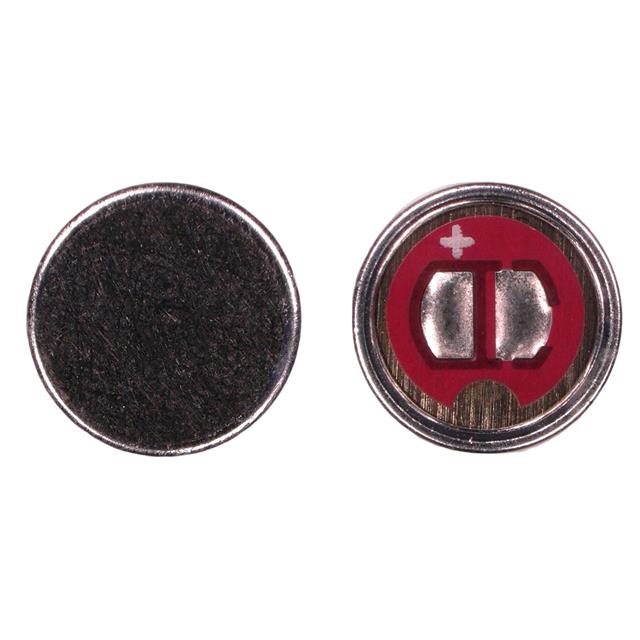

OWMO-6027TA-34-RC101
ActiveOle Wolff Electronics Inc
MIC COND ANLG OMNI -34DB
OWMO-6027TA-34-RC101
ActiveOle Wolff Electronics Inc
MIC COND ANLG OMNI -34DB
Description
General part information
OWMO-6027TA-34-RC101
50 Hz ~ 8 kHz Analog Microphone Electret Condenser 1 V ~ 10 V Omnidirectional (-34dB ±3dB @ 94dB SPL) Solder Pads
Technical Specifications
Parameters and characteristics for this part
| Specification | OWMO-6027TA-34-RC101 |
|---|---|
| Current - Supply | 500 µA |
| Direction | Omnidirectional |
| Frequency Range (Max) | 8 kHz |
| Frequency Range (Min) | 50 Hz |
| Height (Max) | 0.126 in |
| Impedance | 2.2 kOhms |
| Output Type | Analog |
| Port Location | Top |
| S/N Ratio | 70 dB |
| Sensitivity (Nominal) | -34 dB |
| Sensitivity Tolerance | 3 dB |
| Shape | Circular |
| Size / Dimension Diameter | 0.236 in |
| Termination | Solder Pads |
| Type | Electret Condenser |
| Voltage - Rated | 2 VAC |
| Voltage Range (Max) | 10 V |
| Voltage Range (Min) | 1 V |
