80PK-24
ActiveFluke Electronics

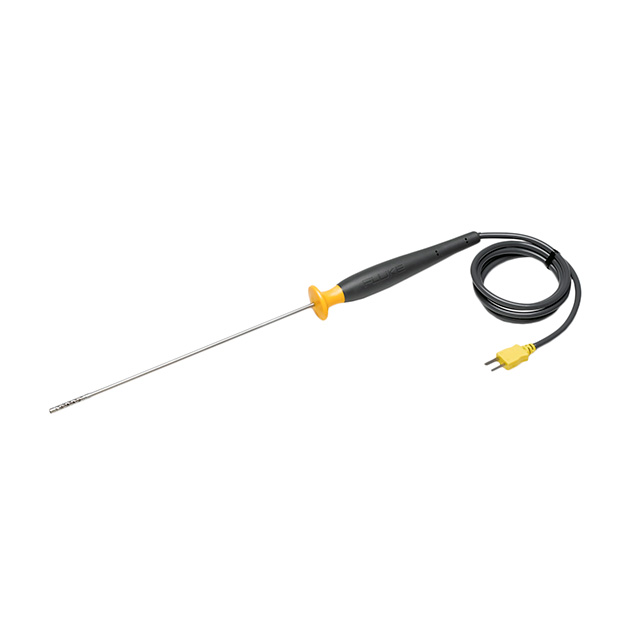

PROBE AIR TEMP SUREGRIP TYPE-K
Deep-Dive with AI
Search across all available documentation for this part.
80PK-24
ActiveFluke Electronics
PROBE AIR TEMP SUREGRIP TYPE-K
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 80PK-24 |
|---|---|
| Cable Insulation | Poly-Vinyl Chloride (PVC) |
| Cable Length | 100 cm |
| Cable Length | 39.37 in |
| Plug Color | Yellow |
| Plug Type | Sub-Mini (Thermocouple Plug) |
| Probe Length | 8.5 in |
| Probe Length | 215.9 mm |
| Probe Material | Inconel |
| Probe Temperature Range [Max] | 816 °C |
| Probe Temperature Range [Max] | 1500 °F |
| Probe Temperature Range [Min] | -40 °C |
| Probe Temperature Range [Min] | -40 °F |
| Tip Type | Air, Caged |
| Type | K-Type Thermocouple |
| Usage | HVAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 159.99 | |
Description
General part information
80PK-24
39.370" (1000.00mm) K-Type Thermocouple Air, Caged -40 ~ 1500°F (-40 ~ 816°C)
Documents
Technical documentation and resources
